PLAIN BEVEL SEAT LONG WELD FERRULE 304 3A

Attribute name	Attribute value
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14WL3.0.STEP
Catalog File	Fittings Catalog.pdf

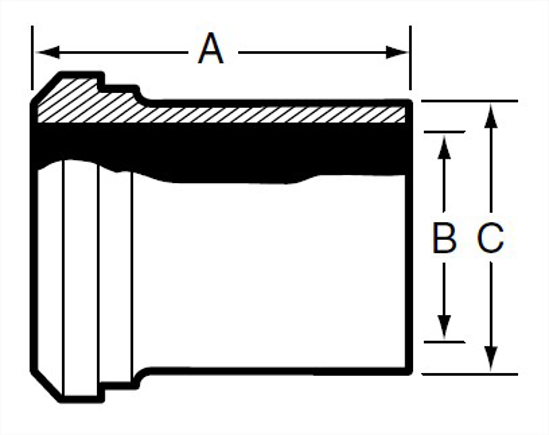

A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.84

Material Type

304

Industry Standard

3A

Connections

Plain Bevel Seat X Weld

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Cad Model File

14WL3.0.STEP

A, in.

3

B, in.

2.87

C, mm.

76.2
