E7WWW - Weld Tee

Material Type
Size

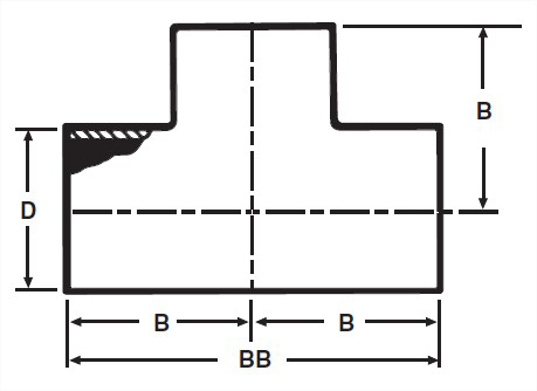

View Dimensions

Dimensions

OD Tube Size	B, in.	D, in.	D, mm.	T Nom Wall, in.	BB, in.	BB, mm.	Product Weight
1	1.125	1	25.4	0.065	2.25	57.15	0.14
1.25	2.25	1.25	31.75	0.065	3.312	84.12	--
1.5	1.656	1.5	38.1	0.065	3.312	84.12	0.34
2	2.062	2	50.8	0.065	4.125	104.78	0.58
2.5	2.343	2.5	63.5	0.065	4.687	119.05	0.74
3	2.593	3	76.2	0.065	5.187	131.75	1.06
4	3.437	4	101.6	0.083	6.875	174.63	2.36
6	5.625	6	152.4	0.109	11.25	285.75	6.46
8	7	8	203.2	0.109	14	355.6	--

	VNE part number
OD Tube Size	304	316L
1	E7WWW1.0	E7WWW-6L1.0
1.25	E7WWW1.25	E7WWW-6L1.25
1.5	E7WWW1.5	E7WWW-6L1.5
2	E7WWW2.0	E7WWW-6L2.0
2.5	E7WWW2.5	E7WWW-6L2.5
3	E7WWW3.0	E7WWW-6L3.0
4	E7WWW4.0	E7WWW-6L4.0
6	E7WWW6.0	E7WWW-6L6.0
8	E7WWW8.0	E7WWW-6L8.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.14

Material Type	304
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1.25-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.25
D, in.	1.25
D, mm.	31.75
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1.5-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.34

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-2-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.58

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-2.5-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.74

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-3-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.06

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-4-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	3.437
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.36

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-6-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75
Product Weight	6.46

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWW8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-8-7-304
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	7
D, in.	8
D, mm.	203.2
T Nom Wall, in.	0.109
BB, in.	14
BB, mm.	355.6

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.14

Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1.25-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.25
D, in.	1.25
D, mm.	31.75
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-1.5-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.34

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-2-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.58

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-2.5-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.74

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-3-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.06

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-4-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	3.437
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	6.875
BB, mm.	174.63
Product Weight	2.36

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-6-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	5.625
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75
Product Weight	6.46

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWW8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7WWW
Steel O’brien Part Number	7WWW-8-7-316
Wayland Part Number	W7WWW
Dixon Part Number	B7WWW
Sanitary Solutions Part Number	SS7WWW
Sanitube Part Number	7WS
B, in.	7
D, in.	8
D, mm.	203.2
T Nom Wall, in.	0.109
BB, in.	14
BB, mm.	355.6
