E7RI - Female E-Line End Reducing Tee

E7RI - Female E-Line End Reducing Tee

Material Type
Size

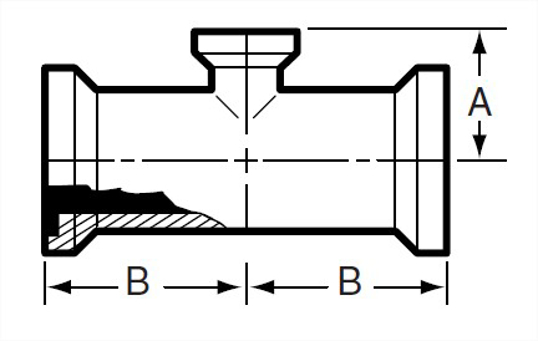

View Dimensions

Dimensions

E7RI - Female E-Line End Reducing Tee

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1.5X1.0	2.156	54.76	2.593	1.1
2.0X1.0	3.093	78.56	4.031	1.48
2.0X1.5	2.718	69.04	3.062	1.64
2.5X1.5	4.156	105.56	4	2.28
2.5X2.0	3.312	84.12	3.5	2.36
3.0X2.0	3.562	90.47	3.812	3.04
3.0X2.5	3.75	95.25	3.812	3.3
4.0X2.0	5.031	127.79	5.218	5.26
4.0X2.5	4.906	124.61	5.218	5.54
4.0X3.0	--	--	--	5.72
6.0X3.0	6.843	173.81	6.75	--
6.0X4.0	6.968	176.99	6.75	--

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E7RI1.5X1.0	E7RI-6L1.5X1.0
2.0X1.0	E7RI2.0X1.0	E7RI-6L2.0X1.0
2.0X1.5	E7RI2.0X1.5	E7RI-6L2.0X1.5
2.5X1.5	E7RI2.5X1.5	E7RI-6L2.5X1.5
2.5X2.0	E7RI2.5X2.0	E7RI-6L2.5X2.0
3.0X2.0	E7RI3.0X2.0	E7RI-6L3.0X2.0
3.0X2.5	E7RI3.0X2.5	E7RI-6L3.0X2.5
4.0X2.0	E7RI4.0X2.0	E7RI-6L4.0X2.0
4.0X2.5	E7RI4.0X2.5	E7RI-6L4.0X2.5
4.0X3.0	E7RI4.0X3.0	E7RI-6L4.0X3.0
6.0X3.0	E7RI6.0X3.0	E7RI-6L6.0X3.0
6.0X4.0	E7RI6.0X4.0	E7RI-6L6.0X4.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76
B, in.	2.593
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.093
A, mm.	78.56
B, in.	4.031
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04
B, in.	3.062
Product Weight	1.64

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.156
A, mm.	105.56
B, in.	4
Product Weight	2.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.312
A, mm.	84.12
B, in.	3.5
Product Weight	2.36

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
B, in.	3.812
Product Weight	3.04

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
B, in.	3.812
Product Weight	3.3

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	5.031
A, mm.	127.79
B, in.	5.218
Product Weight	5.26

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.906
A, mm.	124.61
B, in.	5.218
Product Weight	5.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	5.72

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.843
A, mm.	173.81
B, in.	6.75

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.968
A, mm.	176.99
B, in.	6.75

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.156
A, mm.	54.76
B, in.	2.593
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.093
A, mm.	78.56
B, in.	4.031
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.718
A, mm.	69.04
B, in.	3.062
Product Weight	1.64

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.156
A, mm.	105.56
B, in.	4
Product Weight	2.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.312
A, mm.	84.12
B, in.	3.5

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
B, in.	3.812
Product Weight	3.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
B, in.	3.812
Product Weight	3.3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	5.031
A, mm.	127.79
B, in.	5.218
Product Weight	5.26

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.906
A, mm.	124.61
B, in.	5.218
Product Weight	5.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Product Weight	5.72

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.843
A, mm.	173.81
B, in.	6.75

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line X Female E-Line
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.968
A, mm.	176.99
B, in.	6.75

Click here to request 3D Step File

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
