E7TTW - Thread BS X Thread BS X Weld Tee

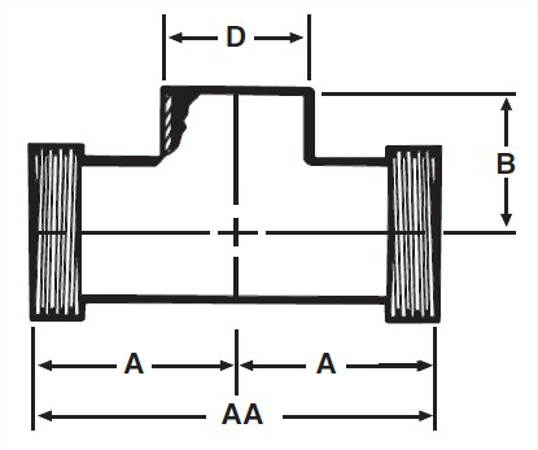

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	AA, in.	AA, mm.	Product Weight
1	1.812	46.02	1.125	1	25.4	0.065	3.625	92.08	0.44
1.5	2.375	60.33	1.656	1.5	38.1	0.065	4.75	120.65	0.74
2	2.781	70.64	2.062	2	50.8	0.065	5.562	141.27	1.18
2.5	3.187	80.95	2.343	2.5	63.5	0.065	6.375	161.93	2.02
3	3.5	88.9	2.593	3	76.2	0.065	7	177.8	2.34
4	4.656	118.26	3.625	4	101.6	0.083	9.312	236.52	4.72

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	1.812
A, mm.	46.02
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AA, in.	3.625
AA, mm.	92.08
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	2.375
A, mm.	60.33
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AA, in.	4.75
AA, mm.	120.65
Product Weight	0.74

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	2.781
A, mm.	70.64
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AA, in.	5.562
AA, mm.	141.27
Product Weight	1.18

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	3.187
A, mm.	80.95
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	6.375
AA, mm.	161.93
Product Weight	2.02

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	3.5
A, mm.	88.9
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AA, in.	7
AA, mm.	177.8
Product Weight	2.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	4.656
A, mm.	118.26
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AA, in.	9.312
AA, mm.	236.52
Product Weight	4.72

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	1.812
A, mm.	46.02
B, in.	1.125
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
AA, in.	3.625
AA, mm.	92.08
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	2.375
A, mm.	60.33
B, in.	1.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
AA, in.	4.75
AA, mm.	120.65
Product Weight	0.74

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	2.781
A, mm.	70.64
B, in.	2.062
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
AA, in.	5.562
AA, mm.	141.27
Product Weight	1.18

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	3.187
A, mm.	80.95
B, in.	2.343
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
AA, in.	6.375
AA, mm.	161.93
Product Weight	2.02

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	3.5
A, mm.	88.9
B, in.	2.593
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
AA, in.	7
AA, mm.	177.8
Product Weight	2.34

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L7TTW
Wayland Part Number	W7TTW
Dixon Part Number	B7TTW
Sanitary Solutions Part Number	SS7TTW
Sanitube Part Number	7TTW
A, in.	4.656
A, mm.	118.26
B, in.	3.625
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
AA, in.	9.312
AA, mm.	236.52
Product Weight	4.72
