32-14F - Plain BS w/13H Nut Both Ends Eccentric Reducer

32-14F - Plain BS w/13H Nut Both Ends Eccentric Reducer

Material Type
Size

View Dimensions

Dimensions

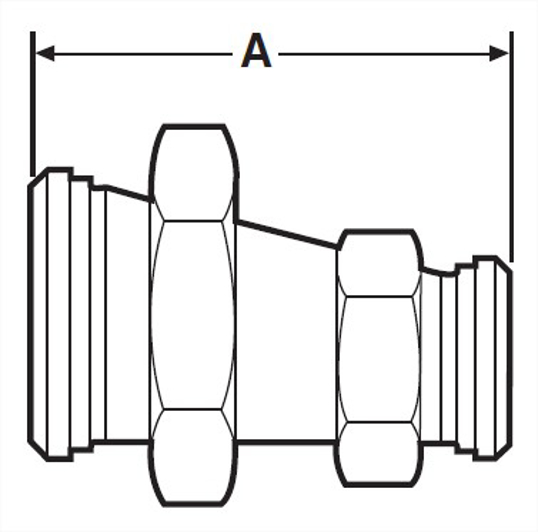

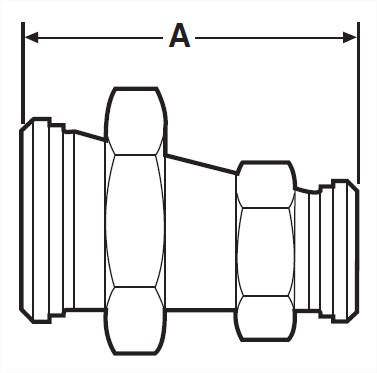

32-14F - Plain BS w/13H Nut Both Ends Eccentric Reducer

OD Tube Size	A, in.	A, mm.	Product Weight
1.5X1.0	4.062	103.17	1.3
2.0X1.0	6.093	154.76	1.82
2.0X1.5	4.218	107.14	2.08
2.5X1.5	6.143	156.03	2.94
2.5X2.0	4.343	110.31	3.12
3.0X2.0	6.437	163.5	4.1
3.0X2.5	4.687	119.05	4.54
4.0X2.0	10.5	266.7	7.14
4.0X2.5	8.75	222.25	7.36
4.0X3.0	6.75	171.45	7.92

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	32-14F1.5X1.0	32-14F-6L1.5X1.0
2.0X1.0	32-14F2.0X1.0	32-14F-6L2.0X1.0
2.0X1.5	32-14F2.0X1.5	32-14F-6L2.0X1.5
2.5X1.5	32-14F2.5X1.5	32-14F-6L2.5X1.5
2.5X2.0	32-14F2.5X2.0	32-14F-6L2.5X2.0
3.0X2.0	32-14F3.0X2.0	32-14F-6L3.0X2.0
3.0X2.5	32-14F3.0X2.5	32-14F-6L3.0X2.5
4.0X2.0	32-14F4.0X2.0	32-14F-6L4.0X2.0
4.0X2.5	32-14F4.0X2.5	32-14F-6L4.0X2.5
4.0X3.0	32-14F4.0X3.0	32-14F-6L4.0X3.0

Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17
Product Weight	1.3

Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.093
A, mm.	154.76
Product Weight	1.82

Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.218
A, mm.	107.14
Product Weight	2.08

Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.143
A, mm.	156.03
Product Weight	2.94

Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.343
A, mm.	110.31
Product Weight	3.12

Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.437
A, mm.	163.5
Product Weight	4.1

Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.687
A, mm.	119.05
Product Weight	4.54

Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	10.5
A, mm.	266.7
Product Weight	7.14

Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.75
A, mm.	222.25
Product Weight	7.36

Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	32-14F4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.75
A, mm.	171.45
Product Weight	7.92

Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F1.5X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.062
A, mm.	103.17

Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.093
A, mm.	154.76
Product Weight	1.82

Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.218
A, mm.	107.14
Product Weight	2.08

Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F2.5X1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.143
A, mm.	156.03
Product Weight	2.94

Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.343
A, mm.	110.31
Product Weight	3.12

Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.437
A, mm.	163.5
Product Weight	4.1

Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.687
A, mm.	119.05

Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F4.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	10.5
A, mm.	266.7
Product Weight	7.14

Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	8.75
A, mm.	222.25
Product Weight	7.36

Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Plain Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	32-14F4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6.75
A, mm.	171.45
Product Weight	7.92
