15WL - Thread BS Ferrule Long

15WL - Thread BS Ferrule Long

Material Type
Size

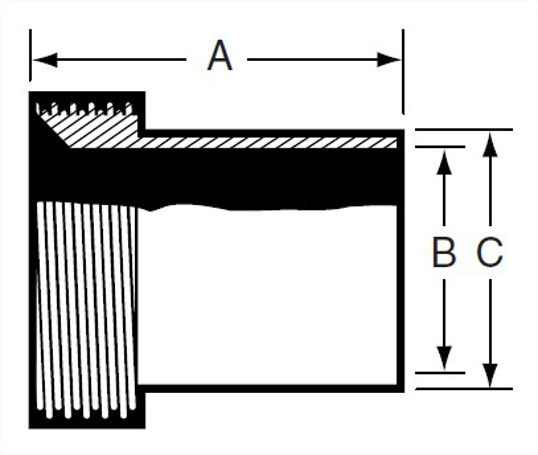

View Dimensions

Dimensions

15WL - Thread BS Ferrule Long

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	2	50.8	0.87	1	25.4	0.2
1.5	2.25	57.15	1.37	1.5	38.1	0.32
2	2.5	63.5	1.87	2	50.8	0.48
2.5	2.75	69.85	2.37	2.5	63.5	0.76
3	3	76.2	2.87	3	76.2	0.98
4	4	101.6	3.834	4	101.6	2.06

Close

	VNE part number
OD Tube Size	304	316L
1	15WL1.0	15WL-6L1.0
1.5	15WL1.5	15WL-6L1.5
2	15WL2.0	15WL-6L2.0
2.5	15WL2.5	15WL-6L2.5
3	15WL3.0	15WL-6L3.0
4	15WL4.0	15WL-6L4.0

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.2

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.25
A, mm.	57.15
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.32

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.48

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.76

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.98

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	15WL4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	2.06

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.2

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.25
A, mm.	57.15
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.32

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.48

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.75
A, mm.	69.85
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.76

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.98

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	15WL4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	2.06
