E16AI-14I-5 - Schedule 5 Male E-Line Solid End Cap

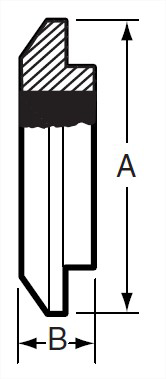

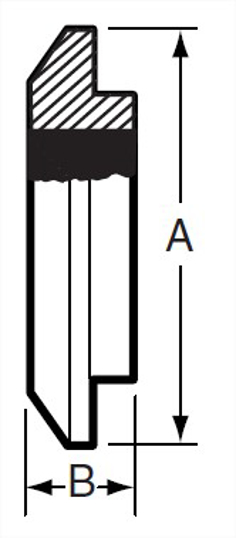

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.
1	2	50.8	1.751	0.5	12.7
1.5	2.648	67.26	2.24	0.585	14.86
2	3.317	84.25	2.746	0.75	19.05
2.5	3.868	98.25	3.307	0.75	19.05
3	4.882	124	4.295	0.75	19.05
4	5.882	149.4	5.295	0.75	19.05

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2
A, mm.	50.8
B, in.	1.751
C, in.	0.5
C, mm.	12.7

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	2.648
A, mm.	67.26
B, in.	2.24
C, in.	0.585
C, mm.	14.86

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.317
A, mm.	84.25
B, in.	2.746
C, in.	0.75
C, mm.	19.05

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	3.868
A, mm.	98.25
B, in.	3.307
C, in.	0.75
C, mm.	19.05

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	4.882
A, mm.	124
B, in.	4.295
C, in.	0.75
C, mm.	19.05

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-16AI-14I
Wayland Part Number	W16AI-14I
Dixon Part Number	16AI-14I
Sanitary Solutions Part Number	SS16AI-14I
Sanitube Part Number	16AI-14I
A, in.	5.882
A, mm.	149.4
B, in.	5.295
C, in.	0.75
C, mm.	19.05
