E2WK - Short Weld 45 Degree Elbow

Material Type
Size

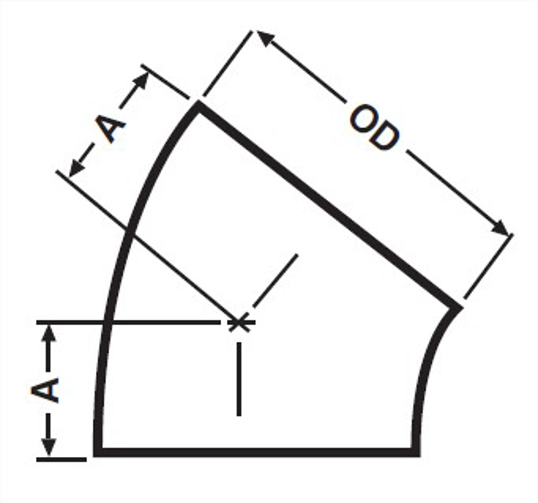

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	T Nom Wall, in.	Product Weight
0.5	--	--	--	0.02
0.75	--	--	--	0.04
1	0.625	15.88	0.065	--
1.25	0.781	19.84	0.065	--
1.5	0.937	23.8	0.065	--
2	1.25	31.75	0.065	--
2.5	1.562	39.67	0.065	--
3	1.875	47.63	0.065	0.6
4	2.5	63.5	0.083	--
6	3.75	95.25	0.109	4.1
8	5	127	0.109	--

	VNE part number
OD Tube Size	304	316L
0.5	--	E2WK-6L.5
0.75	--	E2WK-6L.75
1	E2WK1.0	E2WK-6L1.0
1.25	E2WK1.25	E2WK-6L1.25
1.5	E2WK1.5	E2WK-6L1.5
2	E2WK2.0	E2WK-6L2.0
2.5	E2WK2.5	E2WK-6L2.5
3	E2WK3.0	E2WK-6L3.0
4	E2WK4.0	E2WK-6L4.0
6	E2WK6.0	E2WK-6L6.0
8	E2WK8.0	E2WK-6L8.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.625
A, mm.	15.88
T Nom Wall, in.	0.065

Material Type	304
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1.25-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.781
A, mm.	19.84
T Nom Wall, in.	0.065

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1.5-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.937
A, mm.	23.8
T Nom Wall, in.	0.065

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-2-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.25
A, mm.	31.75
T Nom Wall, in.	0.065

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-2.5-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.562
A, mm.	39.67
T Nom Wall, in.	0.065

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-3-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.875
A, mm.	47.63
T Nom Wall, in.	0.065
Product Weight	0.6

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-4-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	2.5
A, mm.	63.5
T Nom Wall, in.	0.083

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-6-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	3.75
A, mm.	95.25
T Nom Wall, in.	0.109
Product Weight	4.1

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2WK8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-8-7-304
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	5
A, mm.	127
T Nom Wall, in.	0.109

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	0.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-.50-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
Product Weight	0.02

Material Type	316L
Size	0.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-.75-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
Product Weight	0.04

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.625
A, mm.	15.88
T Nom Wall, in.	0.065

Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1.25-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.781
A, mm.	19.84
T Nom Wall, in.	0.065

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-1.5-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	0.937
A, mm.	23.8
T Nom Wall, in.	0.065

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-2-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.25
A, mm.	31.75
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-2.5-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.562
A, mm.	39.67
T Nom Wall, in.	0.065

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-3-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	1.875
A, mm.	47.63
T Nom Wall, in.	0.065
Product Weight	0.6

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-4-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	2.5
A, mm.	63.5
T Nom Wall, in.	0.083

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-6-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	3.75
A, mm.	95.25
T Nom Wall, in.	0.109
Product Weight	4.1

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2WK8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WK-7
Steel O’brien Part Number	2WK-8-7-316
Wayland Part Number	W2WK
Dixon Part Number	B2WK
Sanitary Solutions Part Number	SS2WK
Sanitube Part Number	2WK
A, in.	5
A, mm.	127
T Nom Wall, in.	0.109
