E17-15I-15I - Female E-Line X Female E-Line

E17-15I-15I - Female E-Line X Female E-Line

Material Type
Size

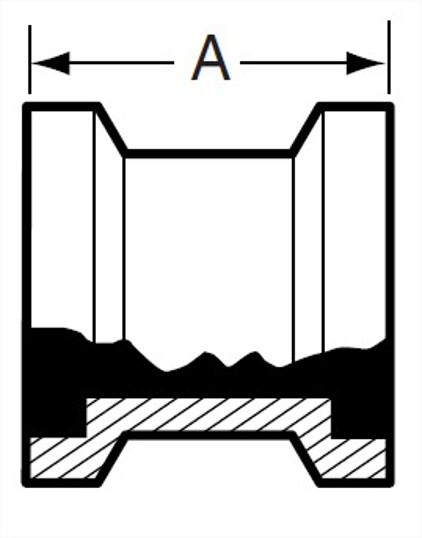

View Dimensions

Dimensions

E17-15I-15I - Female E-Line X Female E-Line

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.562	39.67	0.36
1.5	1.875	47.63	0.6
2	2.062	52.37	0.76
2.5	2.312	58.72	1.24
3	2.437	61.9	1.56
4	2.687	68.25	2.28
6	2.25	57.15	--

Close

	VNE part number
OD Tube Size	304	316L
1	E17-15I-15I1.0	E17-15I-15I6L10
1.5	E17-15I-15I1.5	E17-15I-15I6L15
2	E17-15I-15I2.0	E17-15I-15I6L20
2.5	E17-15I-15I2.5	E17-15I-15I6L25
3	E17-15I-15I3.0	E17-15I-15I6L30
4	E17-15I-15I4.0	E17-15I-15I6L40
6	E17-15I-15I6.0	E17-15I-15I6L60

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.562
A, mm.	39.67
Product Weight	0.36

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.875
A, mm.	47.63
Product Weight	0.6

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.062
A, mm.	52.37
Product Weight	0.76

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.312
A, mm.	58.72
Product Weight	1.24

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	1.56

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E17-15I-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.687
A, mm.	68.25
Product Weight	2.28

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.25
A, mm.	57.15

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.437
A, mm.	61.9
Product Weight	1.56

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.687
A, mm.	68.25
Product Weight	2.28

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2.25
A, mm.	57.15

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.562
A, mm.	39.67
Product Weight	0.36

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.875
A, mm.	47.63
Product Weight	0.6

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.062
A, mm.	52.37
Product Weight	0.76

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Female E-Line
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17-15I-15I2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.312
A, mm.	58.72
Product Weight	1.24
