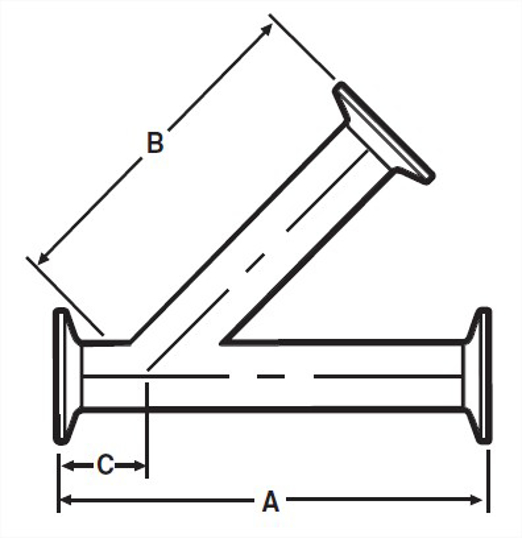

OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
---|---|---|---|---|---|---|
1 |
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
2 |
|
|
|
|
|
|
2.5 |
|
|
|
|
|
|
3 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
6 |
|
|
|
|
|
|
VNE part number | ||
---|---|---|
OD Tube Size | 304 | 316L |
1 | EG28A1.0 | EG28A-6L1.0 |
1.5 | EG28A1.5 | EG28A-6L1.5 |
2 | EG28A2.0 | EG28A-6L2.0 |
2.5 | EG28A2.5 | EG28A-6L2.5 |
3 | EG28A3.0 | EG28A-6L3.0 |
4 | EG28A4.0 | EG28A-6L4.0 |
6 | EG28A6.0 | EG28A-6L6.0 |
Material Type | 304 |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A1.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-1-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 7 |
A, mm. | 177.8 |
B, in. | 5.5 |
C, in. | 1.5 |
C, mm. | 38.1 |
Product Weight | 0.98 |
Material Type | 304 |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A1.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-1.5-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 8.375 |
A, mm. | 212.73 |
B, in. | 6.687 |
C, in. | 1.687 |
C, mm. | 42.85 |
Product Weight | 1.28 |
Material Type | 304 |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A2.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-2-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 9.625 |
A, mm. | 244.48 |
B, in. | 7.625 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 1.88 |
Material Type | 304 |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A2.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-2.5-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 11.125 |
A, mm. | 282.58 |
B, in. | 9 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 2.84 |
Material Type | 304 |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A3.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-3-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 11.75 |
A, mm. | 298.45 |
B, in. | 9.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 3.52 |
Material Type | 304 |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A4.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-4-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 14.062 |
A, mm. | 357.17 |
B, in. | 11.375 |
C, in. | 2.687 |
C, mm. | 68.25 |
Product Weight | 7.56 |
Material Type | 304 |
Size | 6 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A6.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-6-304 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 18.875 |
A, mm. | 479.43 |
B, in. | 15.375 |
C, in. | 4.375 |
C, mm. | 111.13 |
Material Type | 316L |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A1.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-1-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 7 |
A, mm. | 177.8 |
B, in. | 5.5 |
C, in. | 1.5 |
C, mm. | 38.1 |
Product Weight | 0.98 |
Material Type | 316L |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A1.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-1.5-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 8.375 |
A, mm. | 212.73 |
B, in. | 6.687 |
C, in. | 1.687 |
C, mm. | 42.85 |
Product Weight | 1.28 |
Material Type | 316L |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A2.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-2-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 9.625 |
A, mm. | 244.48 |
B, in. | 7.625 |
C, in. | 2.125 |
C, mm. | 53.98 |
Product Weight | 1.88 |
Material Type | 316L |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A2.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-2.5-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 11.125 |
A, mm. | 282.58 |
B, in. | 9 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 2.84 |
Material Type | 316L |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A3.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-3-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 11.75 |
A, mm. | 298.45 |
B, in. | 9.375 |
C, in. | 2.375 |
C, mm. | 60.33 |
Product Weight | 3.52 |
Material Type | 316L |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A4.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-4-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 14.062 |
A, mm. | 357.17 |
B, in. | 11.375 |
C, in. | 2.687 |
C, mm. | 68.25 |
Product Weight | 7.56 |
Material Type | 316L |
Size | 6 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Clamp X Clamp |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG28A6.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | 28AMP |
Steel O’brien Part Number | 28AMP-6-316 |
Wayland Part Number | W28AMP |
Dixon Part Number | B28AMP |
Sanitary Solutions Part Number | SS28AMP |
Sanitube Part Number | 28AMP |
A, in. | 18.875 |
A, mm. | 479.43 |
B, in. | 15.375 |
C, in. | 4.375 |
C, mm. | 111.13 |
