EG28B - True Y

Material Type
Size

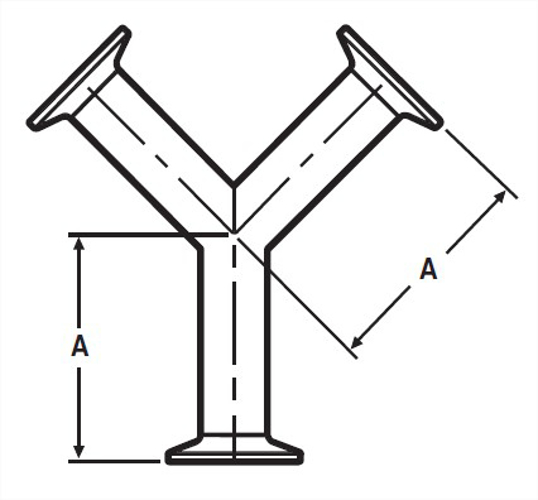

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	3.5	88.9	0.9
1.5	3.5	88.9	0.9
2	4.5	114.3	1.58
2.5	5.5	139.7	2.32
3	6.5	165.1	3.52
4	8.8625	225.11	7.56
6	8.875	225.43	--

	VNE part number
OD Tube Size	304	316L
1	EG28B1.0	EG28B-6L1.0
1.5	EG28B1.5	EG28B-6L1.5
2	EG28B2.0	EG28B-6L2.0
2.5	EG28B2.5	EG28B-6L2.5
3	EG28B3.0	EG28B-6L3.0
4	EG28B4.0	EG28B-6L4.0
6	EG28B6.0	EG28B-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-1-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	3.5
A, mm.	88.9
Product Weight	0.9

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-1.5-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	3.5
A, mm.	88.9
Product Weight	0.9

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-2-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	4.5
A, mm.	114.3
Product Weight	1.58

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-2.5-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	5.5
A, mm.	139.7
Product Weight	2.32

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-3-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	6.5
A, mm.	165.1
Product Weight	3.52

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-4-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	8.8625
A, mm.	225.11
Product Weight	7.56

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-6-304
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	8.875
A, mm.	225.43

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-1-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	3.5
A, mm.	88.9
Product Weight	0.9

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-1.5-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	3.5
A, mm.	88.9
Product Weight	0.9

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-2-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	4.5
A, mm.	114.3
Product Weight	1.58

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-2.5-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	5.5
A, mm.	139.7
Product Weight	2.32

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-3-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	6.5
A, mm.	165.1
Product Weight	3.52

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-4-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	8.8625
A, mm.	225.11
Product Weight	7.56

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG28B6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	28BMP
Steel O’brien Part Number	28BMP-6-316
Wayland Part Number	W28BMP
Dixon Part Number	B28BMP
Sanitary Solutions Part Number	SS28BMP
Sanitube Part Number	28BMP
A, in.	8.875
A, mm.	225.43
