EG16A-5 - Schedule 5 Clamp Cap

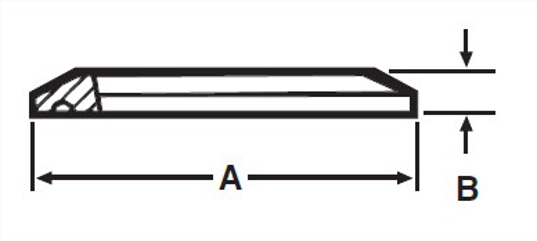

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.
1	1.984	50.39	0.25
1.5	2.516	63.91	0.25
2	3.047	77.39	0.25
2.5	3.579	90.91	0.25
3	4.125	104.78	0.25
4	5.125	130.18	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	1.984
A, mm.	50.39
B, in.	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	2.516
A, mm.	63.91
B, in.	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.047
A, mm.	77.39
B, in.	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.579
A, mm.	90.91
B, in.	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	4.125
A, mm.	104.78
B, in.	0.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	5.125
A, mm.	130.18
B, in.	0.25
