E17-14I-14MP - Male E-Line X Clamp Adapter

Material Type
Size

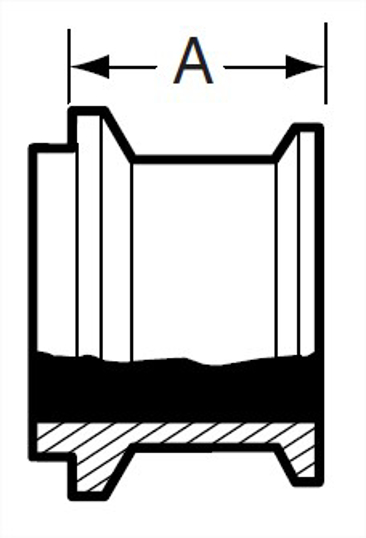

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.093	27.76	0.34
1.5	1.25	31.75	0.32
2	1.25	31.75	0.48
2.5	1.312	33.32	0.68
3	1.406	35.71	0.9
4	1.656	42.06	1.42
6	1.687	42.85	--

	VNE part number
OD Tube Size	304	316L
1	E17-14I-14MP1.0	E17-14I-14MP-6L1.0
1.5	E17-14I-14MP1.5	E17-14I-14MP-6L1.5
2	E17-14I-14MP2.0	E17-14I-14MP-6L2.0
2.5	E17-14I-14MP2.5	E17-14I-14MP-6L2.5
3	E17-14I-14MP3.0	E17-14I-14MP-6L3.0
4	E17-14I-14MP4.0	E17-14I-14MP-6L4.0
6	E17-14I-14MP6.0	E17-14I-14MP-6L6.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.093
A, mm.	27.76
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.25
A, mm.	31.75
Product Weight	0.32

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.25
A, mm.	31.75
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.312
A, mm.	33.32
Product Weight	0.68

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.406
A, mm.	35.71
Product Weight	0.9

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.656
A, mm.	42.06
Product Weight	1.42

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.687
A, mm.	42.85

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.093
A, mm.	27.76
Product Weight	0.34

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.25
A, mm.	31.75
Product Weight	0.32

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.25
A, mm.	31.75
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.312
A, mm.	33.32
Product Weight	0.68

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.406
A, mm.	35.71
Product Weight	0.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.656
A, mm.	42.06
Product Weight	1.42

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-17-14I-14MP
Wayland Part Number	W17-14I-14MP
Dixon Part Number	17-14I-14MP
Sanitary Solutions Part Number	SS17-14I-14MP
Sanitube Part Number	17-14I-14MP
A, in.	1.687
A, mm.	42.85
