E14WLI - Male E-Line Long Ferrule

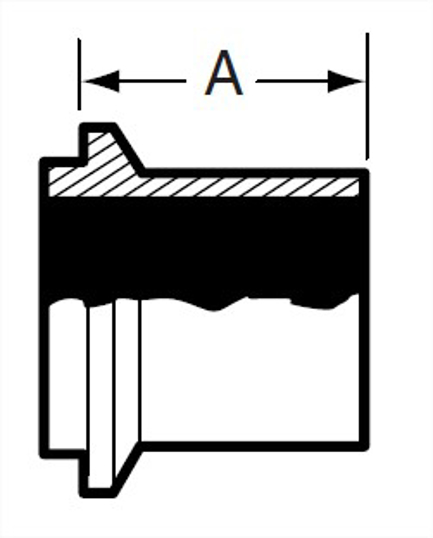

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
1	1.563	39.7	0.28
1.5	1.843	46.81	0.28
2	2.062	52.37	0.48
2.5	2.187	55.55	0.7
3	2.375	60.33	0.92
4	2.687	68.25	1.52
6	3.812	96.82	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.563
A, mm.	39.7
Product Weight	0.28

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.843
A, mm.	46.81
Product Weight	0.28

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	2.062
A, mm.	52.37
Product Weight	0.48

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	2.187
A, mm.	55.55
Product Weight	0.7

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	2.375
A, mm.	60.33
Product Weight	0.92

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	2.687
A, mm.	68.25
Product Weight	1.52

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E14WLI6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	3.812
A, mm.	96.82
