14-22 Adapter 13H Nut X FNPT

14-22 Adapter 13H Nut X FNPT

Material Type
Size

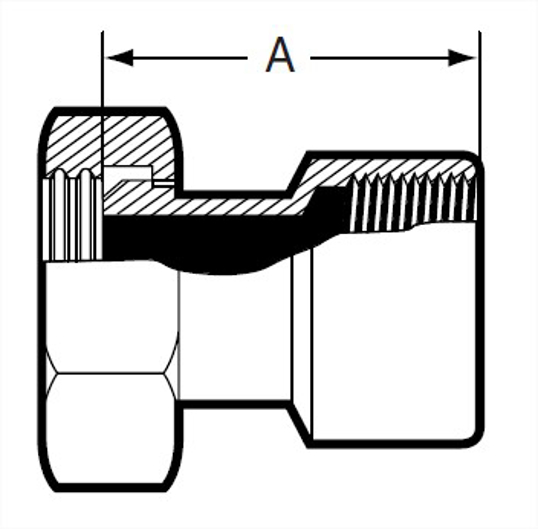

View Dimensions

Dimensions

14-22 Adapter 13H Nut X FNPT

OD Tube Size	A, in.	A, mm.	Product Weight
1	2.5	63.5	0.68
1.5	2.937	74.6	1.28
2	2.937	74.6	1.82
2.5	3.375	85.73	2.7
3	3.562	90.47	4.38
4	3.75	95.25	7.64

Close

	VNE part number
OD Tube Size	304	316L
1	14-221.0	14-22-6L1.0
1.5	14-221.5	14-22-6L1.5
2	14-222.0	14-22-6L2.0
2.5	14-222.5	14-22-6L2.5
3	14-223.0	14-22-6L3.0
4	14-224.0	14-22-6L4.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-221.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
Product Weight	0.68

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-221.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.937
A, mm.	74.6
Product Weight	1.28

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-222.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.937
A, mm.	74.6
Product Weight	1.82

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-222.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.375
A, mm.	85.73
Product Weight	2.7

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-223.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
Product Weight	4.38

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14-224.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	7.64

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-221.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
Product Weight	0.68

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-221.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.937
A, mm.	74.6
Product Weight	1.28

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-222.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.937
A, mm.	74.6
Product Weight	1.82

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-222.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.375
A, mm.	85.73
Product Weight	2.7

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-223.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.562
A, mm.	90.47
Product Weight	4.38

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Female NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14-224.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.75
A, mm.	95.25
Product Weight	7.64
