EG16A - Clamp Cap

Material Type
Size

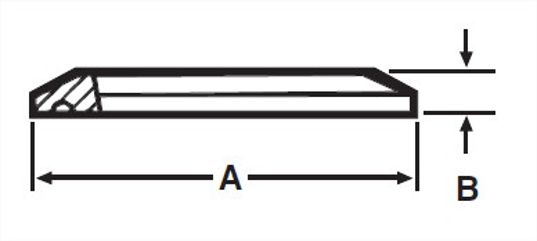

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
0.75	0.992	25.2	0.2	0.04
1.5	1.984	50.39	0.25	0.18
2	2.516	63.91	0.25	0.3
2.5	3.047	77.39	0.25	0.44
3	3.579	90.91	0.25	0.66
4	4.682	118.92	0.312	1.32
5	5.692	144.58	0.385	--
6	6.57	166.88	0.437	3.86
8	8.57	217.68	0.437	6.7
10	10.57	268.48	0.5	13.75
12	12.57	319.28	0.5	20.05

	VNE part number
OD Tube Size	304	316L
0.75	--	EG16A-6L.75
1.5	EG16A1.5	EG16A-6L1.5
2	EG16A2.0	EG16A-6L2.0
2.5	EG16A2.5	EG16A-6L2.5
3	EG16A3.0	EG16A-6L3.0
4	EG16A4.0	EG16A-6L4.0
5	--	EG16A-6L5.0
6	EG16A6.0	EG16A-6L6.0
8	--	EG16A-6L8.0
10	--	EG16A-6L10.0
12	--	EG16A-6L12.0

Material Type	316L
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	10
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A10.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-10-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	10.57
A, mm.	268.48
B, in.	0.5
Product Weight	13.75

Material Type	316L
Size	12
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	12
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A12.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	16AMP-12-316
A, in.	12.57
A, mm.	319.28
B, in.	0.5
Product Weight	20.05

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-1.5-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	1.984
A, mm.	50.39
B, in.	0.25
Product Weight	0.18

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-2-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	2.516
A, mm.	63.91
B, in.	0.25
Product Weight	0.3

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-2.5-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.047
A, mm.	77.39
B, in.	0.25
Product Weight	0.44

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-3-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.579
A, mm.	90.91
B, in.	0.25
Product Weight	0.66

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-4-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	4.682
A, mm.	118.92
B, in.	0.312
Product Weight	1.32

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-6-304
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	6.57
A, mm.	166.88
B, in.	0.437
Product Weight	3.86

Material Type	316L
Size	0.75
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-.75-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	0.992
A, mm.	25.2
B, in.	0.2
Product Weight	0.04

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-1.5-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	1.984
A, mm.	50.39
B, in.	0.25
Product Weight	0.18

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-2-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	2.516
A, mm.	63.91
B, in.	0.25
Product Weight	0.3

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-2.5-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.047
A, mm.	77.39
B, in.	0.25
Product Weight	0.44

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-3-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	3.579
A, mm.	90.91
B, in.	0.25
Product Weight	0.66

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-4-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	4.682
A, mm.	118.92
B, in.	0.312
Product Weight	1.32

Material Type	316L
Size	5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	5
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A5.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-5-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	5.692
A, mm.	144.58
B, in.	0.385

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-6-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	6.57
A, mm.	166.88
B, in.	0.437
Product Weight	3.86

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG16A8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	16AMP
Steel O’brien Part Number	16AMP-8-316
Wayland Part Number	W16AMP
Dixon Part Number	16AMP
Sanitary Solutions Part Number	SS16AMP
Sanitube Part Number	16AMP
A, in.	8.57
A, mm.	217.68
B, in.	0.437
Product Weight	6.7
