EG21 - Clamp X Male NPT Adapter

Material Type
Size

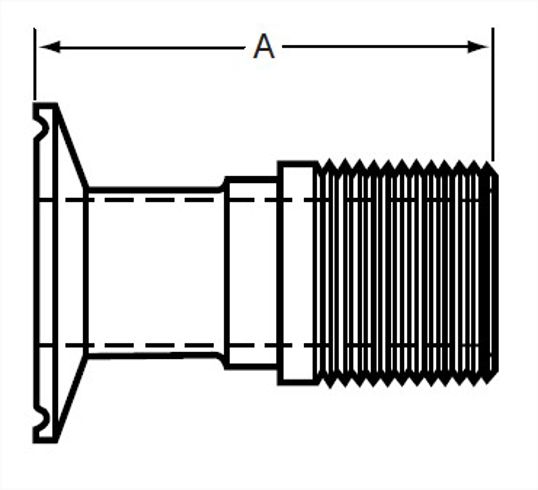

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
.75X.5	--	--	--
1	2.875	73.03	0.48
1.0X.5	2.125	53.98	0.32
1.0X.75	2.125	53.98	0.36
1.25	2.875	73.03	--
1.5	2.875	73.03	0.7
1.5X.5	2.125	53.98	--
1.5X.75	2.125	53.98	--
1.5X1.25	2.25	57.15	0.65
2	2.937	74.6	0.9
2.0X1.0	2.25	57.15	0.58
2.0X1.25	2.25	57.15	0.48
2.0X1.5	2.25	57.15	0.76
2.5	3.437	87.3	1.32
2.5X1.5	2.25	57.15	0.9
2.5X2.0	2.312	58.72	0.98
3	3.625	92.08	2.1
3.0X1.5	2.25	57.15	1.1
3.0X2.0	2.312	58.72	1.16
3.0X2.5	2.812	71.42	1.38
4	3.812	96.82	3.04
4.0X2.0	2.312	58.72	1.8
4.0X2.5	2.812	71.42	2.04
4.0X3.0	3	76.2	2.58
6	4.875	123.83	--
6.0X4.0	3.062	77.77	--

	VNE part number
OD Tube Size	304	316L
.75X.5	--	EG21-6L.75X.5
1	EG211.0	EG21-6L1.0
1.0X.5	--	EG21-6L1.0X.5
1.0X.75	--	EG21-6L1.0X.75
1.25	--	EG21-6L1.25
1.5	EG211.5	EG21-6L1.5
1.5X.5	--	EG21-6L1.5X.5
1.5X.75	--	EG21-6L1.5X.75
1.5X1.25	--	EG21-6L1.5X1.25
2	EG212.0	EG21-6L2.0
2.0X1.0	--	EG21-6L2.0X1.0
2.0X1.25	--	EG21-6L2.0X1.25
2.0X1.5	--	EG21-6L2.0X1.5
2.5	EG212.5	EG21-6L2.5
2.5X1.5	--	EG21-6L2.5X1.5
2.5X2.0	--	EG21-6L2.5X2.0
3	EG213.0	EG21-6L3.0
3.0X1.5	--	EG21-6L3.0X1.5
3.0X2.0	--	EG21-6L3.0X2.0
3.0X2.5	--	EG21-6L3.0X2.5
4	EG214.0	EG21-6L4.0
4.0X2.0	--	EG21-6L4.0X2.0
4.0X2.5	--	EG21-6L4.0X2.5
4.0X3.0	--	EG21-6L4.0X3.0
6	EG216.0	EG21-6L6.0
6.0X4.0	--	EG21-6L6.0X4.0

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG211.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.5-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.875
A, mm.	73.03
Product Weight	0.7

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG212.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2.5-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.437
A, mm.	87.3
Product Weight	1.32

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG211.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.875
A, mm.	73.03
Product Weight	0.48

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG212.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.937
A, mm.	74.6
Product Weight	0.9

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG213.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-3-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.625
A, mm.	92.08
Product Weight	2.1

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG214.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.812
A, mm.	96.82
Product Weight	3.04

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-6-304
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	4.875
A, mm.	123.83

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG211.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.875
A, mm.	73.03
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.5X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.5X1.25-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.65

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2X1-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.0X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2X1.25-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2X1.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2.5X1.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	0.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2.5X2-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.312
A, mm.	58.72
Product Weight	0.98

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-3X1.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.25
A, mm.	57.15
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-3X2-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.312
A, mm.	58.72
Product Weight	1.16

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-3X2.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.812
A, mm.	71.42
Product Weight	1.38

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4X2-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.312
A, mm.	58.72
Product Weight	1.8

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4X2.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.812
A, mm.	71.42
Product Weight	2.04

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4X3-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3
A, mm.	76.2
Product Weight	2.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X4.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-6X4-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.062
A, mm.	77.77

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-6-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	4.875
A, mm.	123.83

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	.75X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	.75X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-.75X.50-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.0X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1X.50-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.125
A, mm.	53.98
Product Weight	0.32

Material Type	316L
Size	1.0X.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG21-6L1.0X.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1X.75-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.125
A, mm.	53.98
Product Weight	0.36

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.5X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.5X.50-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.125
A, mm.	53.98

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.5X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.5X.75-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.125
A, mm.	53.98

Material Type	316L
Size	1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG211.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.25-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.875
A, mm.	73.03

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG211.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-1.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.875
A, mm.	73.03
Product Weight	0.7

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG212.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	2.937
A, mm.	74.6
Product Weight	0.9

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG212.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-2.5-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.437
A, mm.	87.3
Product Weight	1.32

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG213.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-3-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.625
A, mm.	92.08
Product Weight	2.1

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Male NPT
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG214.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	21MP
Steel O’brien Part Number	21MP-4-316
Wayland Part Number	W21MP
Dixon Part Number	21MP
Sanitary Solutions Part Number	SS21MP
Sanitube Part Number	21MP
A, in.	3.812
A, mm.	96.82
Product Weight	3.04
