Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

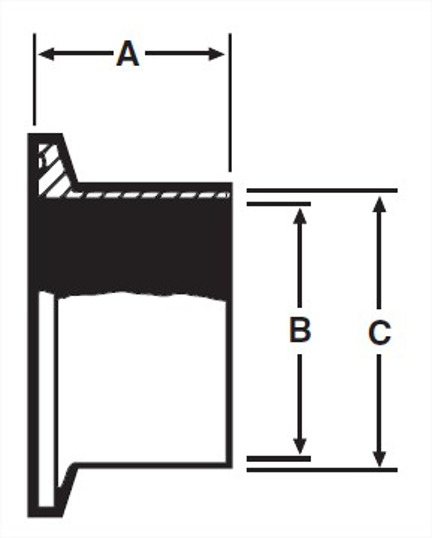

OD Tube Size | A, in. | A, mm. | B, in. | C, in. | C, mm. | Product Weight |
---|---|---|---|---|---|---|
0.5 |
|
|
|
|
|
|
0.75 |
|
|
|
|
|
|
1 |
|
|
|
|
|
|
1.25 |
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
2 |
|
|
|
|
|
|
2.5 |
|
|
|
|
|
|
3 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
5 |
|
|
|
|
|
|
6 |
|
|
|
|
|
|
8 |
|
|
|
|
|
|
10 |
|
|
|
|
|
|
VNE part number | ||
---|---|---|
OD Tube Size | 304 | 316L |
0.5 | -- | EG14AM7-6L.5 |
0.75 | -- | EG14AM7-6L.75 |
1 | EG14AM71.0 | EG14AM7-6L1.0 |
1.25 | -- | EG14AM7-6L1.25 |
1.5 | EG14AM71.5 | EG14AM7-6L1.5 |
2 | EG14AM72.0 | EG14AM7-6L2.0 |
2.5 | EG14AM72.5 | EG14AM7-6L2.5 |
3 | EG14AM73.0 | EG14AM7-6L3.0 |
4 | EG14AM74.0 | EG14AM7-6L4.0 |
5 | -- | EG14AM7-6L5.0 |
6 | EG14AM76.0 | EG14AM7-6L6.0 |
8 | -- | EG14AM7-6L8.0 |
10 | -- | EG14AM7-6L10.0 |
Material Type | 316L |
Size | 6 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM76.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-6-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 5.78 |
C, in. | 6 |
C, mm. | 152.4 |
Product Weight | 1.25 |
Material Type | 316L |
Size | 8 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 8 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM78.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-8-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 7.782 |
C, in. | 8 |
C, mm. | 203.2 |
Product Weight | 1.45 |
Material Type | 316L |
Size | 10 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 10 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM710.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-10-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 9.732 |
C, in. | 10 |
C, mm. | 254 |
Material Type | 304 |
Size | 6 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 6 |
Wall Thickness | 0.109 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM76.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-6-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 5.78 |
C, in. | 6 |
C, mm. | 152.4 |
Product Weight | 1.25 |
Material Type | 304 |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM71.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-1-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 0.87 |
C, in. | 1 |
C, mm. | 25.4 |
Product Weight | 0.18 |
Material Type | 304 |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM71.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-1.5-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 1.37 |
C, in. | 1.5 |
C, mm. | 38.1 |
Product Weight | 0.14 |
Material Type | 304 |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM72.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-2-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.37 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.2 |
Material Type | 304 |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM72.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-2.5-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.87 |
C, in. | 2.5 |
C, mm. | 63.5 |
Product Weight | 0.26 |
Material Type | 304 |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM73.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-3-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 3.834 |
C, in. | 3 |
C, mm. | 76.2 |
Product Weight | 0.32 |
Material Type | 304 |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 304 |
Material Test Reports | COC Available for 304 Materials |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM74.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-4-304 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 4.782 |
C, in. | 4 |
C, mm. | 101.6 |
Product Weight | 0.54 |
Material Type | 316L |
Size | 1 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 1 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM71.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-1-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 0.87 |
C, in. | 1 |
C, mm. | 25.4 |
Product Weight | 0.18 |
Material Type | 316L |
Size | 1.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 1.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM71.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-1.5-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 1.37 |
C, in. | 1.5 |
C, mm. | 38.1 |
Product Weight | 0.14 |
Material Type | 316L |
Size | 2 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 2 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM72.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-2-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 1.87 |
C, in. | 2 |
C, mm. | 50.8 |
Product Weight | 0.2 |
Material Type | 316L |
Size | 2.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 2.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM72.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-2.5-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.37 |
C, in. | 2.5 |
C, mm. | 63.5 |
Product Weight | 0.26 |
Material Type | 316L |
Size | 3 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 3 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM73.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-3-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 2.87 |
C, in. | 3 |
C, mm. | 76.2 |
Product Weight | 0.32 |
Material Type | 316L |
Size | 4 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 4 |
Wall Thickness | 0.083 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM74.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-4-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 3.834 |
C, in. | 4 |
C, mm. | 101.6 |
Product Weight | 0.54 |
Material Type | 316L |
Size | 5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 5 |
Wall Thickness | 0.109 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM75.0.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-5-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.5 |
A, mm. | 38.1 |
B, in. | 4.782 |
C, in. | 5 |
C, mm. | 127 |
Material Type | 316L |
Size | 0.5 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 0.5 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM7.5.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-.50-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 0.37 |
C, in. | 0.5 |
C, mm. | 12.7 |
Product Weight | 0.08 |
Material Type | 316L |
Size | 0.75 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 0.75 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM7.75.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-.75-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 0.62 |
C, in. | 0.75 |
C, mm. | 19.05 |
Product Weight | 0.08 |
Material Type | 316L |
Size | 1.25 |
Industry Standard | 3A |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Clamp X Weld |
OD Tube Size | 1.25 |
Wall Thickness | 0.065 |
Material-Type | 316L |
Material Test Reports | MTR’s Available Upon Request |
Passivated | Special Request |
Pressure Rating | See PSI Service Ratings for Clamps |
Pressure Table | clamppressure.pdf |
Cad Model File | EG14AM71.25.STEP |
Catalog File | Fittings Catalog.pdf |
Alfa Laval Part Number | L14AM7 |
Steel O’brien Part Number | L14AM7-1.25-316 |
Wayland Part Number | W14AM7 |
Dixon Part Number | L14AM7 |
Sanitary Solutions Part Number | SSL14AM7 |
Sanitube Part Number | 14AM7 |
A, in. | 1.125 |
A, mm. | 28.58 |
B, in. | 1.12 |
C, in. | 1.25 |
C, mm. | 31.75 |
