E2KP - Weld X Plain BS w/13H Nut 45 Degree Elbow

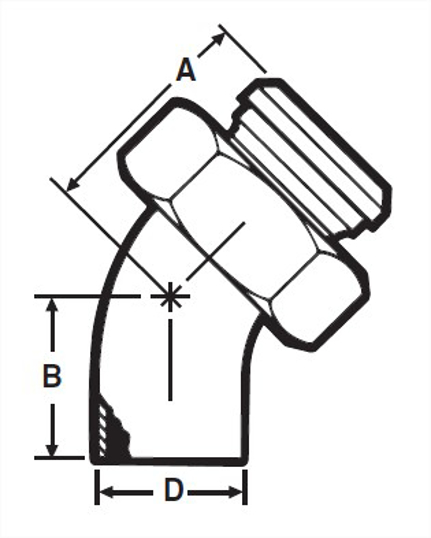

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	1.875	47.63	1.187	1	25.4	0.065	0.56
1.5	2.343	59.51	1.625	1.5	38.1	0.065	0.98
2	3.031	76.99	2.312	2	50.8	0.065	1.62
2.5	3.843	97.61	3	2.5	63.5	0.065	2.48
3	4.593	116.66	3.687	3	76.2	0.065	3.58
4	6.031	153.19	4.812	4	101.6	0.083	6.76

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-1-7-304
A, in.	1.875
A, mm.	47.63
B, in.	1.187
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.56

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-1.5-7-304
A, in.	2.343
A, mm.	59.51
B, in.	1.625
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.98

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-2-7-304
A, in.	3.031
A, mm.	76.99
B, in.	2.312
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.62

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-2.5-7-304
A, in.	3.843
A, mm.	97.61
B, in.	3
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.48

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-3-7-304
A, in.	4.593
A, mm.	116.66
B, in.	3.687
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	3.58

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KP4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-4-7-304
A, in.	6.031
A, mm.	153.19
B, in.	4.812
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.76

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-1-7-316
A, in.	1.875
A, mm.	47.63
B, in.	1.187
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.56

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-1.5-7-316
A, in.	2.343
A, mm.	59.51
B, in.	1.625
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.98

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-2-7-316
A, in.	3.031
A, mm.	76.99
B, in.	2.312
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.62

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-2.5-7-316
A, in.	3.843
A, mm.	97.61
B, in.	3
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	2.48

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-3-7-316
A, in.	4.593
A, mm.	116.66
B, in.	3.687
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	3.58

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Plain Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KP4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2P-4-7-316
A, in.	6.031
A, mm.	153.19
B, in.	4.812
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	6.76
