E17WW - Weld X Schedule 40 Transition Piece

E17WW - Weld X Schedule 40 Transition Piece

Material Type
Size

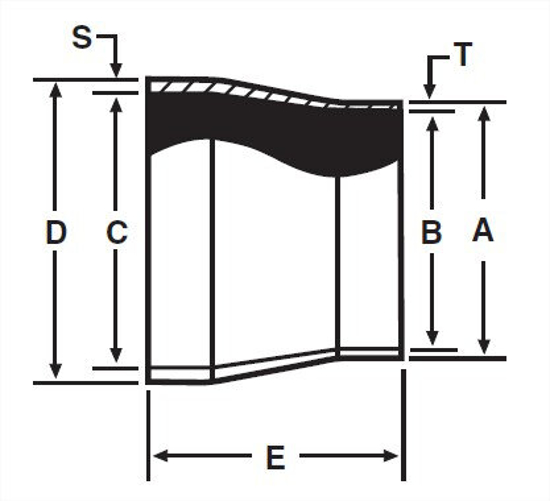

View Dimensions

Dimensions

E17WW - Weld X Schedule 40 Transition Piece

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	S, in.	S, mm.	T Nom Wall, in.	Product Weight
0.5	0.5	12.7	0.37	0.622	15.8	0.84	21.34	1	25.4	0.109	2.77	0.065	0.006
0.75	0.75	19.05	0.62	0.824	20.93	1.05	26.67	1	25.4	0.113	2.87	0.065	0.078
1	1	25.4	0.87	1.049	26.64	1.315	33.4	1	25.4	0.133	3.38	0.065	0.109
1.5	1.5	38.1	1.37	1.61	40.89	1.9	48.26	1.5	38.1	0.145	3.68	0.065	0.258
2	2	50.8	1.87	2.067	52.5	2.375	60.33	1.5	38.1	0.154	3.91	0.065	0.336
2.5	2.5	63.5	2.37	2.469	62.71	2.875	73.03	1.5	38.1	0.203	5.16	0.065	0.492
3	3	76.2	2.87	3.068	77.93	3.5	88.9	2	50.8	0.216	5.49	0.065	0.836
4	4	101.6	3.834	4.026	102.26	4.5	114.3	2	50.8	0.237	6.02	0.083	--
6	6	152.4	5.782	6.065	154.05	6.625	168.28	3	76.2	0.28	7.11	0.109	--

Close

	VNE part number
OD Tube Size	316L
0.5	E17WW6L.5XSCH40
0.75	E17WW6L.75XSCH40
1	E17WW6L1.0XSCH40
1.5	E17WW6L1.5XSCH40
2	E17WW6L2.0XSCH40
2.5	E17WW6L2.5XSCH40
3	E17WW6L3.0XSCH40
4	E17WW6L4.0XSCH40
6	E17WW6L6.0XSCH40

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1
A, mm.	25.4
B, in.	0.87
C, in.	1.049
C, mm.	26.64
D, in.	1.315
D, mm.	33.4
E, in.	1
E, mm.	25.4
S, in.	0.133
S, mm.	3.38
T Nom Wall, in.	0.065
Product Weight	0.109

Material Type	316L
Size	0.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.5XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.5
A, mm.	12.7
B, in.	0.37
C, in.	0.622
C, mm.	15.8
D, in.	0.84
D, mm.	21.34
E, in.	1
E, mm.	25.4
S, in.	0.109
S, mm.	2.77
T Nom Wall, in.	0.065
Product Weight	0.006

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.5
A, mm.	38.1
B, in.	1.37
C, in.	1.61
C, mm.	40.89
D, in.	1.9
D, mm.	48.26
E, in.	1.5
E, mm.	38.1
S, in.	0.145
S, mm.	3.68
T Nom Wall, in.	0.065
Product Weight	0.258

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	2
A, mm.	50.8
B, in.	1.87
C, in.	2.067
C, mm.	52.5
D, in.	2.375
D, mm.	60.33
E, in.	1.5
E, mm.	38.1
S, in.	0.154
S, mm.	3.91
T Nom Wall, in.	0.065
Product Weight	0.336

Material Type	316L
Size	2.5
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW2.5XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.5
A, mm.	63.5
B, in.	2.37
C, in.	2.469
C, mm.	62.71
D, in.	2.875
D, mm.	73.03
E, in.	1.5
E, mm.	38.1
S, in.	0.203
S, mm.	5.16
T Nom Wall, in.	0.065
Product Weight	0.492

Material Type	316L
Size	3
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW3.0XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3
A, mm.	76.2
B, in.	2.87
C, in.	3.068
C, mm.	77.93
D, in.	3.5
D, mm.	88.9
E, in.	2
E, mm.	50.8
S, in.	0.216
S, mm.	5.49
T Nom Wall, in.	0.065
Product Weight	0.836

Material Type	316L
Size	0.75
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW.75XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	0.75
A, mm.	19.05
B, in.	0.62
C, in.	0.824
C, mm.	20.93
D, in.	1.05
D, mm.	26.67
E, in.	1
E, mm.	25.4
S, in.	0.113
S, mm.	2.87
T Nom Wall, in.	0.065
Product Weight	0.078

Material Type	316L
Size	4
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW4.0XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4.026
C, mm.	102.26
D, in.	4.5
D, mm.	114.3
E, in.	2
E, mm.	50.8
S, in.	0.237
S, mm.	6.02
T Nom Wall, in.	0.083

Material Type	316L
Size	6
ID / OD Polish	Machined ID / Machined OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E17WW6.0XSCH40.STEP
Catalog File	Fittings Catalog.pdf
A, in.	6
A, mm.	152.4
B, in.	5.782
C, in.	6.065
C, mm.	154.05
D, in.	6.625
D, mm.	168.28
E, in.	3
E, mm.	76.2
S, in.	0.28
S, mm.	7.11
T Nom Wall, in.	0.109

Click here to request 3D Step File
