EG31CT - Clamp X Thread BS Concentric Reducer

EG31CT - Clamp X Thread BS Concentric Reducer

Material Type
Size

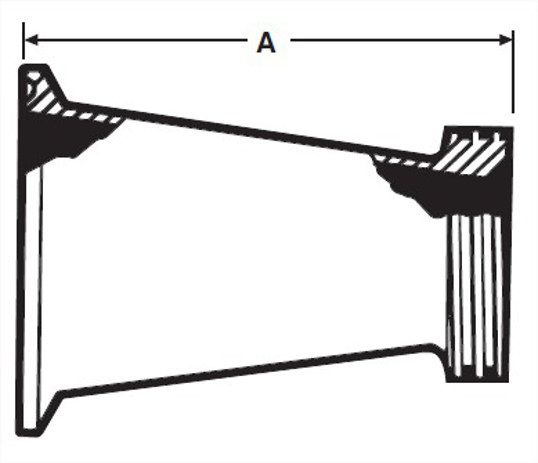

View Dimensions

Dimensions

EG31CT - Clamp X Thread BS Concentric Reducer

OD Tube Size	A, in.	A, mm.	Product Weight
1.5X1.0	3.187	80.95	0.4
2.0X1.0	5.187	131.75	--
2.0X1.5	3.187	80.95	0.54
2.5X1.5	5.187	131.75	0.83
2.5X2.0	3.218	81.74	0.72
3.0X1.5	7.187	182.55	--
3.0X2.0	5.218	132.54	1.11
3.0X2.5	3.343	84.91	1.03
4.0X2.0	9.343	237.31	--
4.0X2.5	7.468	189.69	2.08
4.0X3.0	5.562	141.27	1.94

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	EG31CT1.5X1.0	EG31CT6L1.5X1.0
2.0X1.0	EG31CT2.0X1.0	EG31CT6L2.0X1.0
2.0X1.5	EG31CT2.0X1.5	EG31CT6L2.0X1.5
2.5X1.5	EG31CT2.5X1.5	EG31CT6L2.5X1.5
2.5X2.0	EG31CT2.5X2.0	EG31CT6L2.5X2.0
3.0X1.5	EG31CT3.0X1.5	EG31CT6L3.0X1.5
3.0X2.0	EG31CT3.0X2.0	EG31CT6L3.0X2.0
3.0X2.5	EG31CT3.0X2.5	EG31CT6L3.0X2.5
4.0X2.0	EG31CT4.0X2.0	EG31CT6L4.0X2.0
4.0X2.5	EG31CT4.0X2.5	EG31CT6L4.0X2.5
4.0X3.0	EG31CT4.0X3.0	EG31CT6L4.0X3.0

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X1.5-304
A, in.	7.187
A, mm.	182.55

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X2-304
A, in.	5.218
A, mm.	132.54
Product Weight	1.11

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X2.5-304
A, in.	3.343
A, mm.	84.91
Product Weight	1.03

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X2-304
A, in.	9.343
A, mm.	237.31

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X2.5-304
A, in.	7.468
A, mm.	189.69
Product Weight	2.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X3-304
A, in.	5.562
A, mm.	141.27
Product Weight	1.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2X1.5-304
A, in.	3.187
A, mm.	80.95
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2.5X1.5-304
A, in.	5.187
A, mm.	131.75
Product Weight	0.83

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-1.5X1-316
A, in.	3.187
A, mm.	80.95
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2X1-316
A, in.	5.187
A, mm.	131.75

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2X1.5-316
A, in.	3.187
A, mm.	80.95
Product Weight	0.54

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2.5X1.5-316
A, in.	5.187
A, mm.	131.75
Product Weight	0.83

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2.5X2-316
A, in.	3.218
A, mm.	81.74
Product Weight	0.72

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X1.5-316
A, in.	7.187
A, mm.	182.55

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X2-316
A, in.	5.218
A, mm.	132.54
Product Weight	1.11

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-3X2.5-316
A, in.	3.343
A, mm.	84.91
Product Weight	1.03

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X2-316
A, in.	9.343
A, mm.	237.31

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X2.5-316
A, in.	7.468
A, mm.	189.69
Product Weight	2.08

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-4X3-316
A, in.	5.562
A, mm.	141.27
Product Weight	1.94

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2.5X2-304
A, in.	3.218
A, mm.	81.74
Product Weight	0.72

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-1.5X1-304
A, in.	3.187
A, mm.	80.95
Product Weight	0.4

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Threaded Bevel Seat
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	31MPT-2X1-304
A, in.	5.187
A, mm.	131.75
Product Weight	0.78

Click here to request 3D Step File

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
