EG7 - Clamp Tee

Material Type
Size

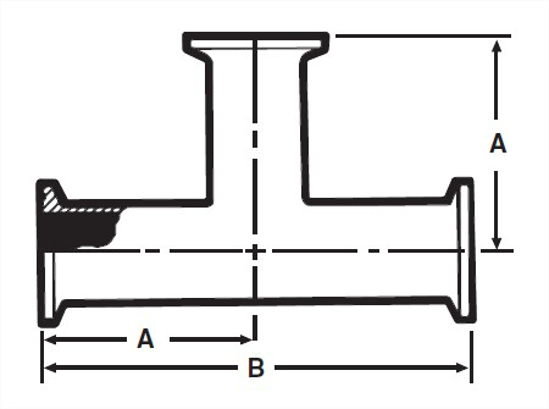

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	2.375	60.33	4.75	0.7
1.5	2.75	69.85	5.5	0.74
2	3.5	88.9	7	1.3
2.5	3.5	88.9	7	1.48
3	3.75	95.25	7.5	1.78
4	4.5	114.3	9	3.26
6	6.5	165.1	13	9.1
8	9.937	252.4	19.875	--

	VNE part number
OD Tube Size	304	316L
1	EG71.0	EG7-6L1.0
1.5	EG71.5	EG7-6L1.5
2	EG72.0	EG7-6L2.0
2.5	EG72.5	EG7-6L2.5
3	EG73.0	EG7-6L3.0
4	EG74.0	EG7-6L4.0
6	EG76.0	EG7-6L6.0
8	EG78.0	EG7-6L8.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-1-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	2.375
A, mm.	60.33
B, in.	4.75
Product Weight	0.7

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG71.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-1.5-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	2.75
A, mm.	69.85
B, in.	5.5
Product Weight	0.74

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG72.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-2-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	1.3

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG72.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-2.5-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	1.48

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG73.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-3-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.75
A, mm.	95.25
B, in.	7.5
Product Weight	1.78

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG74.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-4-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	4.5
A, mm.	114.3
B, in.	9
Product Weight	3.26

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG76.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-6-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	6.5
A, mm.	165.1
B, in.	13
Product Weight	9.1

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG78.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-8-304
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	9.937
A, mm.	252.4
B, in.	19.875

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-1-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	2.375
A, mm.	60.33
B, in.	4.75
Product Weight	0.7

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG71.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-1.5-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	2.75
A, mm.	69.85
B, in.	5.5
Product Weight	0.74

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG72.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-2-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	1.3

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG72.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-2.5-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	1.48

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG73.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-3-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	3.75
A, mm.	95.25
B, in.	7.5
Product Weight	1.78

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG74.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-4-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	4.5
A, mm.	114.3
B, in.	9
Product Weight	3.26

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG76.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-6-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	6.5
A, mm.	165.1
B, in.	13
Product Weight	9.1

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG78.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7MP
Steel O’brien Part Number	7MP-8-316
Wayland Part Number	W7MP
Dixon Part Number	B7MP
Sanitary Solutions Part Number	SS7MP
Sanitube Part Number	7MP
A, in.	9.937
A, mm.	252.4
B, in.	19.875
