7 - Thread BS Tee

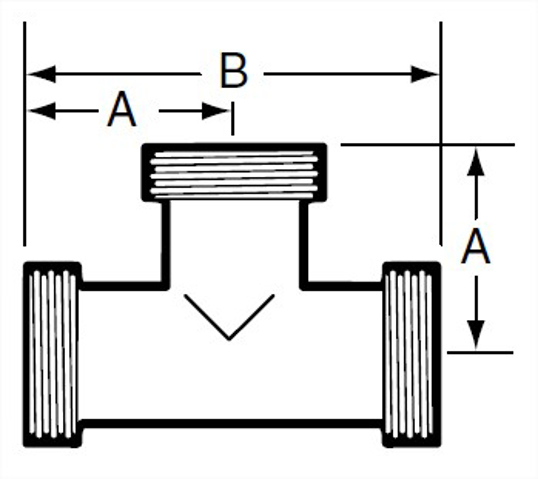

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	1.812	46.02	3.625	--
1.5	2.375	60.33	4.75	--
2	2.781	70.64	5.437	--
2.5	3.187	80.95	6.375	--
3	3.5	88.9	7	--
4	4.656	118.26	9.312	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	71.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	1.812
A, mm.	46.02
B, in.	3.625

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	71.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	2.375
A, mm.	60.33
B, in.	4.75

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	2.781
A, mm.	70.64
B, in.	5.437

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	3.187
A, mm.	80.95
B, in.	6.375

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	3.5
A, mm.	88.9
B, in.	7

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	4.656
A, mm.	118.26
B, in.	9.312

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	1.812
A, mm.	46.02
B, in.	3.625
Product Weight	0.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	2.375
A, mm.	60.33
B, in.	4.75
Product Weight	0.96

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	2.781
A, mm.	70.64
B, in.	5.437
Product Weight	1.48

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	3.187
A, mm.	80.95
B, in.	6.375
Product Weight	2.22

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	3.5
A, mm.	88.9
B, in.	7
Product Weight	2.92

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Threaded Bevel Seat X Threaded Bevel Seat X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	7
Wayland Part Number	W7
Dixon Part Number	B7
Sanitary Solutions Part Number	SS7
Sanitube Part Number	7
A, in.	4.656
A, mm.	118.26
B, in.	9.312
Product Weight	5.68
