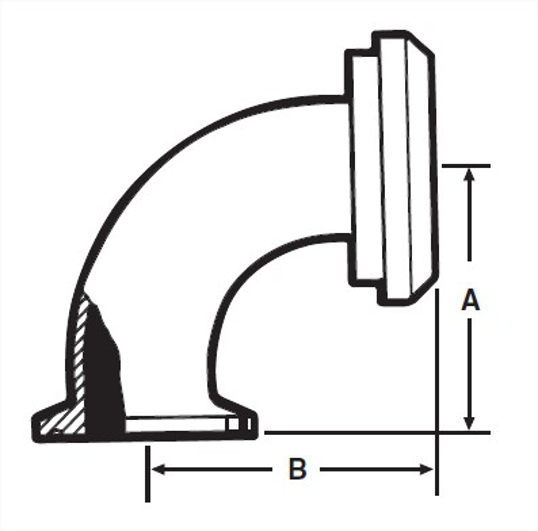

| OD Tube Size | A, in. | A, mm. | B, in. | Product Weight |
|---|---|---|---|---|
| 2.0X1.0 |
|
|
|
|
| 2.0X1.5 |
|
|
|
|
| 2.5X1.5 |
|
|
|
|
| 2.5X2.0 |
|
|
|
|
| 3.0X1.5 |
|
|
|
|
| 3.0X2.0 |
|
|
|
|
| 3.0X2.5 |
|
|
|
|
| 4.0X2.5 |
|
|
|
|
| 4.0X3.0 |
|
|
|
|
| VNE part number | ||
|---|---|---|
| OD Tube Size | 304 | 316L |
| 2.0X1.0 | EG2C31PR2.0X1.0 | EG2C31PR6L20X10 |
| 2.0X1.5 | EG2C31PR2.0X1.5 | EG2C31PR6L20X15 |
| 2.5X1.5 | EG2C31PR2.5X1.5 | EG2C31PR6L25X15 |
| 2.5X2.0 | EG2C31PR2.5X2.0 | EG2C31PR6L25X20 |
| 3.0X1.5 | EG2C31PR3.0X1.5 | EG2C31PR6L30X15 |
| 3.0X2.0 | EG2C31PR3.0X2.0 | EG2C31PR6L30X20 |
| 3.0X2.5 | EG2C31PR3.0X2.5 | EG2C31PR6L30X25 |
| 4.0X2.5 | EG2C31PR4.0X2.5 | EG2C31PR6L40X25 |
| 4.0X3.0 | EG2C31PR4.0X3.0 | EG2C31PR6L40X30 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2.0X1.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.0X1.0 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2 |
| A, mm. | 50.8 |
| B, in. | 2.25 |
| Product Weight | 0.96 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2.0X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.0X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3 |
| Product Weight | 1.08 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2.5X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.5X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3.037 |
| Product Weight | 1.47 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 2.5X2.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.5X2.0 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 3.5 |
| A, mm. | 88.9 |
| B, in. | 3.781 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 3.0X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3.593 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 3.0X2.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X2.0 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 3.5 |
| A, mm. | 88.9 |
| B, in. | 3.843 |
| Product Weight | 2.35 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 3.0X2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 4.25 |
| A, mm. | 107.95 |
| B, in. | 4.593 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 4.0X2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 4.0X2.5 |
| Wall Thickness | .083X.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 4.25 |
| A, mm. | 107.95 |
| B, in. | 4.687 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 304 |
| Size | 4.0X3.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 4.0X3.0 |
| Wall Thickness | .083X.065 |
| Material-Type | 304 |
| Material Test Reports | COC Available for 304 Materials |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 5 |
| A, mm. | 127 |
| B, in. | 5.437 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.0X1.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.0X1.0 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2 |
| A, mm. | 50.8 |
| B, in. | 2.25 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.0X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.0X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.5X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.5X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3.037 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 2.5X2.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 2.5X2.0 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 3.5 |
| A, mm. | 88.9 |
| B, in. | 3.781 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 3.0X1.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 2.75 |
| A, mm. | 69.85 |
| B, in. | 3.593 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 3.0X2.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X2.0 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 3.5 |
| A, mm. | 88.9 |
| B, in. | 3.843 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 3.0X2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 3.0X2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 4.25 |
| A, mm. | 107.95 |
| B, in. | 4.593 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 4.0X2.5 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 4.0X2.5 |
| Wall Thickness | .083X.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 4.25 |
| A, mm. | 107.95 |
| B, in. | 4.687 |
| Cad Model File | Click here to request 3D Step File |
| Material Type | 316L |
| Size | 4.0X3.0 |
| ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
| Connections | Clamp X Plain Bevel Seat |
| OD Tube Size | 4.0X3.0 |
| Wall Thickness | .083X.065 |
| Material-Type | 316L |
| Material Test Reports | MTR’s Available Upon Request |
| Passivated | Special Request |
| Pressure Rating | See PSI Service Ratings for Clamps |
| Pressure Table | clamppressure.pdf |
| Catalog File | Fittings Catalog.pdf |
| A, in. | 5 |
| A, mm. | 127 |
| B, in. | 5.437 |
1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
