32TP - Thread BS X Plain BS w/13H Nut Eccentric Reducer

32TP - Thread BS X Plain BS w/13H Nut Eccentric Reducer

In Stock: Log in to view stock
SKU: 688-10147
VNE part number: 32TP1.5X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP2.0X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP2.0X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP2.5X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP2.5X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 688-10869
VNE part number: 32TP3.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP3.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP4.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP4.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP4.0X3.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L1.5X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L2.0X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L2.0X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L2.5X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L2.5X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L3.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L3.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L4.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L4.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 697-10658
VNE part number: 32TP-6L4.0X3.0

Please log in to view pricing

Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

View Dimensions

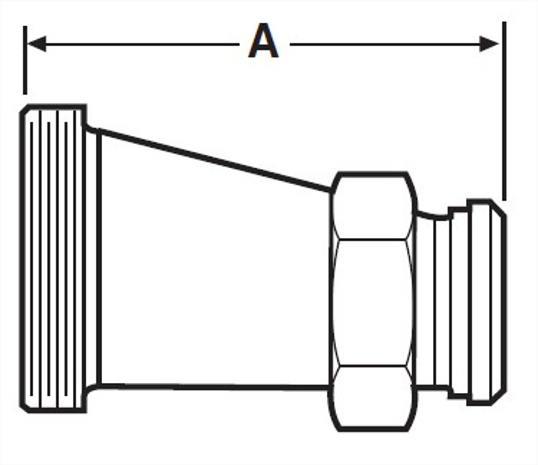

Dimensions
32TP - Thread BS X Plain BS w/13H Nut Eccentric Reducer
OD Tube Size A, in. A, mm. Product Weight
1.5X1.0 4.062 103.17 0.78
2.0X1.0 6.093 154.76 --
2.0X1.5 4.218 107.14 --
2.5X1.5 6.343 161.11 --
2.5X2.0 4.343 110.31 --
3.0X2.0 6.437 163.5 --
3.0X2.5 4.687 119.05 --
4.0X2.0 10.5 266.7 --
4.0X2.5 8.75 222.25 --
4.0X3.0 6.75 171.45 --
Close
VNE part number
OD Tube Size 304 316L
1.5X1.0 32TP1.5X1.0 32TP-6L1.5X1.0
2.0X1.0 32TP2.0X1.0 32TP-6L2.0X1.0
2.0X1.5 32TP2.0X1.5 32TP-6L2.0X1.5
2.5X1.5 32TP2.5X1.5 32TP-6L2.5X1.5
2.5X2.0 32TP2.5X2.0 32TP-6L2.5X2.0
3.0X2.0 32TP3.0X2.0 32TP-6L3.0X2.0
3.0X2.5 32TP3.0X2.5 32TP-6L3.0X2.5
4.0X2.0 32TP4.0X2.0 32TP-6L4.0X2.0
4.0X2.5 32TP4.0X2.5 32TP-6L4.0X2.5
4.0X3.0 32TP4.0X3.0 32TP-6L4.0X3.0
Material Type 304
Size 1.5X1.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 1.5X1.0
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP1.5X1.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.062
A, mm. 103.17
Product Weight 0.78
Material Type 304
Size 2.0X1.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.0X1.0
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP2.0X1.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.093
A, mm. 154.76
Material Type 304
Size 2.0X1.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.0X1.5
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP2.0X1.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.218
A, mm. 107.14
Material Type 304
Size 2.5X1.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.5X1.5
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP2.5X1.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.343
A, mm. 161.11
Material Type 304
Size 2.5X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.5X2.0
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP2.5X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.343
A, mm. 110.31
Material Type 304
Size 3.0X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 3.0X2.0
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP3.0X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.437
A, mm. 163.5
Material Type 304
Size 3.0X2.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 3.0X2.5
Wall Thickness 0.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP3.0X2.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.687
A, mm. 119.05
Material Type 304
Size 4.0X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X2.0
Wall Thickness .083X.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP4.0X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 10.5
A, mm. 266.7
Material Type 304
Size 4.0X2.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X2.5
Wall Thickness .083X.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP4.0X2.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 8.75
A, mm. 222.25
Material Type 304
Size 4.0X3.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X3.0
Wall Thickness .083X.065
Material-Type 304
Material Test Reports COC Available for 304 Materials
Passivated Special Request
Cad Model File 32TP4.0X3.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.75
A, mm. 171.45
Material Type 316L
Size 1.5X1.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 1.5X1.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP1.5X1.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.062
A, mm. 103.17
Material Type 316L
Size 2.0X1.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.0X1.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP2.0X1.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.093
A, mm. 154.76
Material Type 316L
Size 2.0X1.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.0X1.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP2.0X1.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.218
A, mm. 107.14
Material Type 316L
Size 2.5X1.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.5X1.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP2.5X1.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.343
A, mm. 161.11
Material Type 316L
Size 2.5X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 2.5X2.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP2.5X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.343
A, mm. 110.31
Material Type 316L
Size 3.0X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 3.0X2.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP3.0X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.437
A, mm. 163.5
Material Type 316L
Size 3.0X2.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 3.0X2.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP3.0X2.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 4.687
A, mm. 119.05
Material Type 316L
Size 4.0X2.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X2.0
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP4.0X2.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 10.5
A, mm. 266.7
Material Type 316L
Size 4.0X2.5
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X2.5
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP4.0X2.5.STEP
Catalog File Fittings Catalog.pdf
A, in. 8.75
A, mm. 222.25
Material Type 316L
Size 4.0X3.0
Industry Standard 3A
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Threaded Bevel Seat X Plain Bevel Seat
OD Tube Size 4.0X3.0
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Cad Model File 32TP4.0X3.0.STEP
Catalog File Fittings Catalog.pdf
A, in. 6.75
A, mm. 171.45

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930

© 2025 by VNE Stainless. All rights reserved.
