E93WWW - Weld End 3-Way Ball Valves

Material Type
Size
Ball Style

View Dimensions

Dimensions

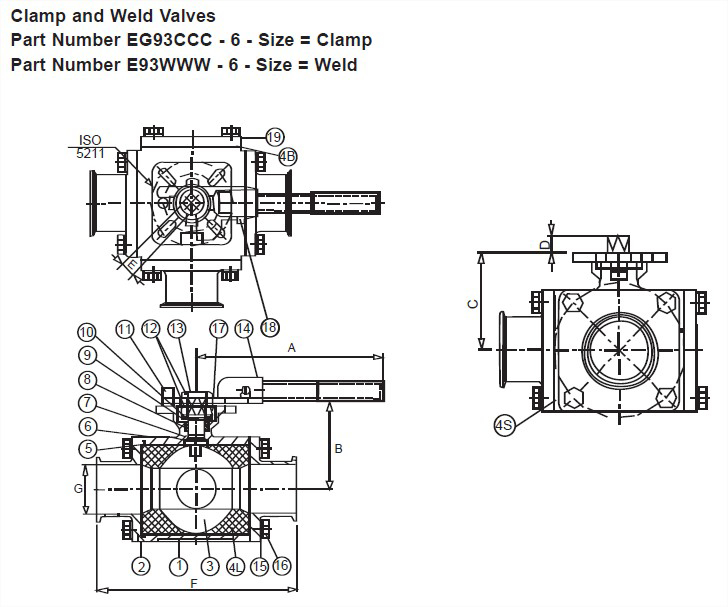

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.	E, in.	E, mm.	F, in.	F, mm.	G, in.	G, mm.	T Nom Wall, in.
0.5	4.75	120.64999999999999	3.0625	1.75	44.449999999999996	0.354	8.991599999999998	0.354	8.991599999999998	4.625	117.475	0.375	9.524999999999999	0.065
0.75	4.75	120.64999999999999	3.25	1.875	47.625	0.354	8.991599999999998	0.354	8.991599999999998	5	127	0.625	15.875	0.065
1	5.375	136.525	3.55	2.323	59.0042	0.433	10.998199999999999	0.433	10.998199999999999	6	152.39999999999998	0.875	22.224999999999998	0.065
1.5	7.125	180.975	4.3125	2.8125	71.4375	0.551	13.9954	0.551	13.9954	6.875	174.625	1.375	34.925	0.065
2	7.125	180.975	4.5	3.25	82.55	0.551	13.9954	0.551	13.9954	7.5	190.5	1.895	48.132999999999996	0.065
2.5	14.5625	369.8875	4.25	3.9375	100.01249999999999	0.669	16.9926	0.669	16.9926	9	228.6	2.375	60.324999999999996	0.065
3	15.75	400.04999999999995	5.25	5	127	0.906	23.0124	0.669	16.9926	10.25	260.34999999999997	2.875	73.02499999999999	0.065

L Port

	VNE part number
OD Tube Size	CF8M (T316)
0.5	E93WWW-6.5
0.75	E93WWW-6.75
1	E93WWW-61.0
1.5	E93WWW-61.5
2	E93WWW-62.0
2.5	E93WWW-62.5
3	E93WWW-63.0

T Port

	VNE part number
OD Tube Size	CF8M (T316)
0.5	E93WWW-6.5-T
0.75	E93WWW-6.75-T
1	E93WWW-61.0-T
1.5	E93WWW-61.5-T
2	E93WWW-62.0-T
2.5	E93WWW-62.5-T
3	E93WWW-63.0-T

Material Type	CF8M (T316)
Size	0.5
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-6.5.step
Catalog File	valves.pdf
A, in.	4.75
A, mm.	120.64999999999999
B, in.	3.0625
C, in.	1.75
C, mm.	44.449999999999996
D, in.	0.354
D, mm.	8.991599999999998
E, in.	0.354
E, mm.	8.991599999999998
F, in.	4.625
F, mm.	117.475
G, in.	0.375
G, mm.	9.524999999999999
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	0.75
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-6.75.step
Catalog File	valves.pdf
A, in.	4.75
A, mm.	120.64999999999999
B, in.	3.25
C, in.	1.875
C, mm.	47.625
D, in.	0.354
D, mm.	8.991599999999998
E, in.	0.354
E, mm.	8.991599999999998
F, in.	5
F, mm.	127
G, in.	0.625
G, mm.	15.875
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	1
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-61.0.step
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.525
B, in.	3.55
C, in.	2.323
C, mm.	59.0042
D, in.	0.433
D, mm.	10.998199999999999
E, in.	0.433
E, mm.	10.998199999999999
F, in.	6
F, mm.	152.39999999999998
G, in.	0.875
G, mm.	22.224999999999998
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	1.5
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-61.5.step
Catalog File	valves.pdf
A, in.	7.125
A, mm.	180.975
B, in.	4.3125
C, in.	2.8125
C, mm.	71.4375
D, in.	0.551
D, mm.	13.9954
E, in.	0.551
E, mm.	13.9954
F, in.	6.875
F, mm.	174.625
G, in.	1.375
G, mm.	34.925
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-62.0.step
Catalog File	valves.pdf
A, in.	7.125
A, mm.	180.975
B, in.	4.5
C, in.	3.25
C, mm.	82.55
D, in.	0.551
D, mm.	13.9954
E, in.	0.551
E, mm.	13.9954
F, in.	7.5
F, mm.	190.5
G, in.	1.895
G, mm.	48.132999999999996
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2.5
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-62.5.step
Catalog File	valves.pdf
A, in.	14.5625
A, mm.	369.8875
B, in.	4.25
C, in.	3.9375
C, mm.	100.01249999999999
D, in.	0.669
D, mm.	16.9926
E, in.	0.669
E, mm.	16.9926
F, in.	9
F, mm.	228.6
G, in.	2.375
G, mm.	60.324999999999996
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	3
Ball Style	L Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	3
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-63.0.step
Catalog File	valves.pdf
A, in.	15.75
A, mm.	400.04999999999995
B, in.	5.25
C, in.	5
C, mm.	127
D, in.	0.906
D, mm.	23.0124
E, in.	0.669
E, mm.	16.9926
F, in.	10.25
F, mm.	260.34999999999997
G, in.	2.875
G, mm.	73.02499999999999
T Nom Wall, in.	0.065

Cad Model File	Click here to request 3D Step File
Material Type	CF8M (T316)
Size	0.5
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Catalog File	valves.pdf
A, in.	4.75
A, mm.	120.64999999999999
B, in.	3.0625
C, in.	1.75
C, mm.	44.449999999999996
D, in.	0.354
D, mm.	8.991599999999998
E, in.	0.354
E, mm.	8.991599999999998
F, in.	4.625
F, mm.	117.475
G, in.	0.375
G, mm.	9.524999999999999
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	0.75
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-6.75-T.step
Catalog File	valves.pdf
A, in.	4.75
A, mm.	120.64999999999999
B, in.	3.25
C, in.	1.875
C, mm.	47.625
D, in.	0.354
D, mm.	8.991599999999998
E, in.	0.354
E, mm.	8.991599999999998
F, in.	5
F, mm.	127
G, in.	0.625
G, mm.	15.875
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	1
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-61.0-T.step
Catalog File	valves.pdf
A, in.	5.375
A, mm.	136.525
B, in.	3.55
C, in.	2.323
C, mm.	59.0042
D, in.	0.433
D, mm.	10.998199999999999
E, in.	0.433
E, mm.	10.998199999999999
F, in.	6
F, mm.	152.39999999999998
G, in.	0.875
G, mm.	22.224999999999998
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	1.5
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-61.5-T.step
Catalog File	valves.pdf
A, in.	7.125
A, mm.	180.975
B, in.	4.3125
C, in.	2.8125
C, mm.	71.4375
D, in.	0.551
D, mm.	13.9954
E, in.	0.551
E, mm.	13.9954
F, in.	6.875
F, mm.	174.625
G, in.	1.375
G, mm.	34.925
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	1000
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-62.0-T.step
Catalog File	valves.pdf
A, in.	7.125
A, mm.	180.975
B, in.	4.5
C, in.	3.25
C, mm.	82.55
D, in.	0.551
D, mm.	13.9954
E, in.	0.551
E, mm.	13.9954
F, in.	7.5
F, mm.	190.5
G, in.	1.895
G, mm.	48.132999999999996
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	2.5
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-62.5-T.step
Catalog File	valves.pdf
A, in.	14.5625
A, mm.	369.8875
B, in.	4.25
C, in.	3.9375
C, mm.	100.01249999999999
D, in.	0.669
D, mm.	16.9926
E, in.	0.669
E, mm.	16.9926
F, in.	9
F, mm.	228.6
G, in.	2.375
G, mm.	60.324999999999996
T Nom Wall, in.	0.065

Material Type	CF8M (T316)
Size	3
Ball Style	T Port
Industry Standard	3A;FDA Title 21, Paragraph 177.1550
ID / OD Polish	20 µin Mechanical ID / Cast OD
OD Tube Size	3
Wall Thickness	0.065
Material-Type	CF8M (T316)
Seat-Material	Dyneon TF 1641 PTFE
Handle Type	Locking
Country of Origin	Taiwan
Material Test Reports	MTR’s Available Upon Request
Valve Pressure Rating	800
Valve Temperature Rating	-65°F to 320°F
Cad Model File	E93WWW-63.0-T.step
Catalog File	valves.pdf
A, in.	15.75
A, mm.	400.04999999999995
B, in.	5.25
C, in.	5
C, mm.	127
D, in.	0.906
D, mm.	23.0124
E, in.	0.669
E, mm.	16.9926
F, in.	10.25
F, mm.	260.34999999999997
G, in.	2.875
G, mm.	73.02499999999999
T Nom Wall, in.	0.065
