EG14WL - Light Wall Tank Ferrule

Material Type
Size

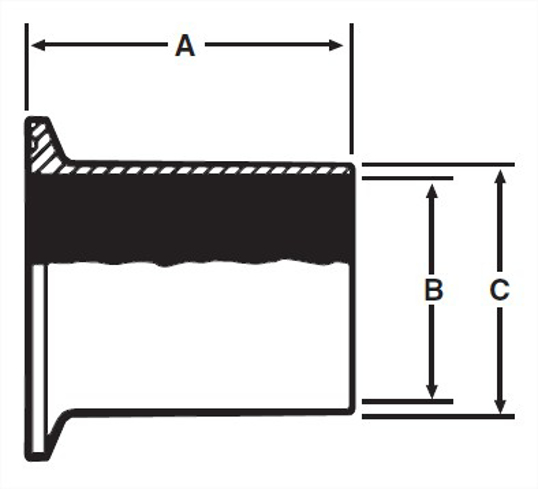

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
1	3	76.2	0.87	1	25.4	0.3
1.5	3	76.2	1.37	1.5	38.1	0.35
2	3	76.2	1.87	2	50.8	0.42
2.5	3	76.2	2.37	2.5	63.5	0.5
3	4	101.6	2.87	3	76.2	0.8
4	4	101.6	3.834	4	101.6	1.24
6	6	152.4	5.782	6	152.4	3.78
8	6	152.4	7.782	8	203.2	4.54
10	6	152.4	9.73	10	254	--
12	6	152.4	11.73	12	304.8	--

	VNE part number
OD Tube Size	304	316L
1	EG14WL1.0	EG14WL-6L1.0
1.5	EG14WL1.5	EG14WL-6L1.5
2	EG14WL2.0	EG14WL-6L2.0
2.5	EG14WL2.5	EG14WL-6L2.5
3	EG14WL3.0	EG14WL-6L3.0
4	EG14WL4.0	EG14WL-6L4.0
6	EG14WL6.0	EG14WL-6L6.0
8	EG14WL8.0	EG14WL-6L8.0
10	EG14WL10.0	EG14WL-6L10.0
12	--	EG14WL-6L12.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-1-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.3

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-1.5-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.35

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-2-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.42

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-2.5-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.5

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-3-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	4
A, mm.	101.6
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.8

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-4-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.24

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-6-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	5.782
C, in.	6
C, mm.	152.4
Product Weight	3.78

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-8-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	7.782
C, in.	8
C, mm.	203.2
Product Weight	4.54

Material Type	304
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	10
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL10.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-10-304
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	9.73
C, in.	10
C, mm.	254

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-1-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.3

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-1.5-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.35

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-2-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.42

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-2.5-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	3
A, mm.	76.2
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.5

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-3-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	4
A, mm.	101.6
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.8

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-4-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	4
A, mm.	101.6
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.24

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-6-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	5.782
C, in.	6
C, mm.	152.4
Product Weight	3.78

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-8-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	7.782
C, in.	8
C, mm.	203.2
Product Weight	4.54

Material Type	316L
Size	10
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	10
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL10.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-10-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	9.73
C, in.	10
C, mm.	254

Material Type	316L
Size	12
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Weld
OD Tube Size	12
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14WL12.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14WLMP
Steel O’brien Part Number	14WLMP-12-316
Wayland Part Number	W14WLMP
Dixon Part Number	14WLMP
Sanitary Solutions Part Number	SS14WLMP
Sanitube Part Number	14WLMP
A, in.	6
A, mm.	152.4
B, in.	11.73
C, in.	12
C, mm.	304.8
