VNE Stainless | TEG16A - BPE Clamp Cap Alloy 22 UNS N06022

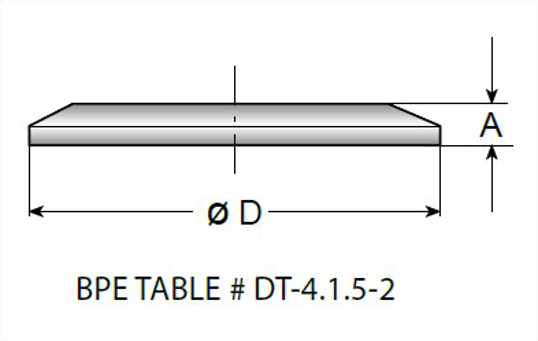

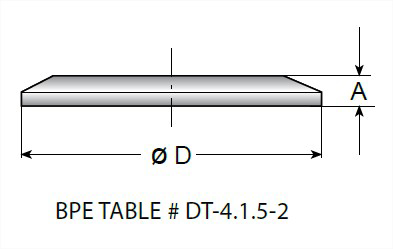

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	Product Weight
0.75	0.187	4.75	0.033
1.5	0.25	6.35	0.187
2	0.25	6.35	0.319
3	0.25	6.35	0.682

Close

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

Cad Model File	Click here to request 3D Step File
Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.5-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	0.187
A, mm.	4.75
Product Weight	0.033

Cad Model File	Click here to request 3D Step File
Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.5-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	0.25
A, mm.	6.35
Product Weight	0.187

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.5-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TEG16A6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	0.25
A, mm.	6.35
Product Weight	0.319

Cad Model File	Click here to request 3D Step File
Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.5-2
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Catalog File	MaxCore.pdf
A, in.	0.25
A, mm.	6.35
Product Weight	0.682

TEG16A - BPE Clamp Cap Alloy 22 UNS N06022
