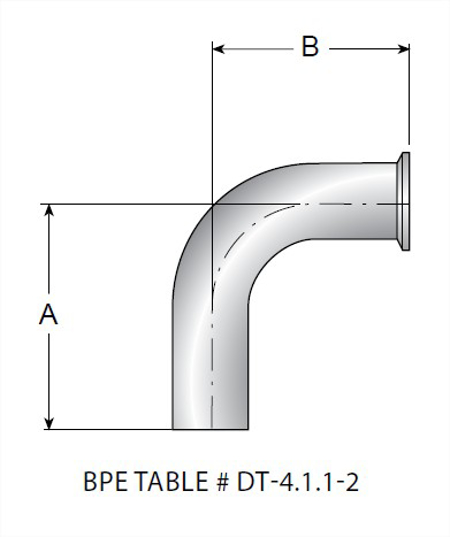

| OD Tube Size | A, in. | A, mm. | B, in. | Product Weight |
|---|---|---|---|---|
| 0.5 |
|
|
|
|
| 0.75 |
|
|
|
|
| 1 |
|
|
|
|
| 1.5 |
|
|
|
|
| 2 |
|
|
|
|
| 2.5 |
|
|
|
|
| 3 |
|
|
|
|
| 4 |
|
|
|
|
| VNE part number | |
|---|---|
| OD Tube Size | 6MO |
| 0.5 | TE2C926MO.5-PL |
| 0.75 | TE2C926MO.75-PL |
| 1 | TE2C926MO1.0-PL |
| 1.5 | TE2C926MO1.5-PL |
| 2 | TE2C926MO2.0-PL |
| 2.5 | TE2C926MO2.5-PL |
| 3 | TE2C926MO3.0-PL |
| 4 | TE2C926MO4.0-PL |
| VNE part number | |
|---|---|
| OD Tube Size | 6MO |
| 0.5 | TE2C926MO.5-PO |
| 0.75 | TE2C926MO.75-PO |
| 1 | TE2C926MO1.0-PO |
| 1.5 | TE2C926MO1.5-PO |
| 2 | TE2C926MO2.0-PO |
| 2.5 | TE2C926MO2.5-PO |
| 3 | TE2C926MO3.0-PO |
| 4 | TE2C926MO4.0-PO |
| Size | 0.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 1.66 |
| Product Weight | 0.121 |
| Size | 0.75 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L.75-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 1.66 |
| Product Weight | 0.141 |
| Size | 1 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L1.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 2.05 |
| Product Weight | 0.385 |
| Size | 1.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L1.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 3.73 |
| A, mm. | 94.74 |
| B, in. | 2.73 |
| Product Weight | 0.523 |
| Size | 2 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L2.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 4.77 |
| A, mm. | 121.16 |
| B, in. | 3.47 |
| Product Weight | 0.891 |
| Size | 2.5 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L2.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 5.43 |
| A, mm. | 137.92 |
| B, in. | 4.1 |
| Product Weight | 1.32 |
| Size | 3 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L3.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 6.17 |
| A, mm. | 156.72 |
| B, in. | 4.83 |
| Product Weight | 1.766 |
| Size | 4 |
| Surface Finish | PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Mechanical ID / 32 µin Mechanical OD |
| Polish Code | PL |
| SF Number | SF1 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L4.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 7.91 |
| A, mm. | 200.91 |
| B, in. | 6.42 |
| Product Weight | 3.593 |
| Size | 4 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 4 |
| Wall Thickness | 0.083 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L4.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 7.91 |
| A, mm. | 200.91 |
| B, in. | 6.42 |
| Product Weight | 3.593 |
| Size | 3 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 3 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L3.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 6.17 |
| A, mm. | 156.72 |
| B, in. | 4.83 |
| Product Weight | 1.766 |
| Size | 2.5 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 2.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L2.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 5.43 |
| A, mm. | 137.92 |
| B, in. | 4.1 |
| Product Weight | 1.32 |
| Size | 2 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 2 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L2.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 4.77 |
| A, mm. | 121.16 |
| B, in. | 3.47 |
| Product Weight | 0.891 |
| Size | 1.5 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 1.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L1.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 3.73 |
| A, mm. | 94.74 |
| B, in. | 2.73 |
| Product Weight | 0.523 |
| Size | 1 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 1 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L1.0-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 2.05 |
| Product Weight | 0.385 |
| Size | 0.75 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 0.75 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L.75-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 1.66 |
| Product Weight | 0.141 |
| Size | 0.5 |
| Surface Finish | PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD |
| Industry Standard | BPE |
| BPE Table # | N/A |
| ID / OD Polish | 20 µin Electropolished ID / 32 µin Mechanical OD |
| Polish Code | PO |
| SF Number | SF5 |
| OD Tube Size | 0.5 |
| Wall Thickness | 0.065 |
| Material-Type | 6MO |
| UNS # | N08367 |
| Material Trade Names (Reference) | AL6XN, AL-6XN®, ULTRA 6XN® |
| Country of Origin | USA, Israel |
| Material Test Reports | MTR’s Ship Automatically With Each Order |
| Passivated | Passivated per ASTM A967 |
| Pressure Rating | Per current BPE standards - section DT |
| Cad Model File | TE2C926L.5-...STEP |
| Catalog File | MaxCore.pdf |
| Alfa Laval Part Number | L2CM92 |
| A, in. | 2.98 |
| A, mm. | 75.69 |
| B, in. | 1.66 |
| Product Weight | 0.121 |
1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
