14W - Plain BS Heavy Wall Tank Ferrule

14W - Plain BS Heavy Wall Tank Ferrule

Material Type
Size

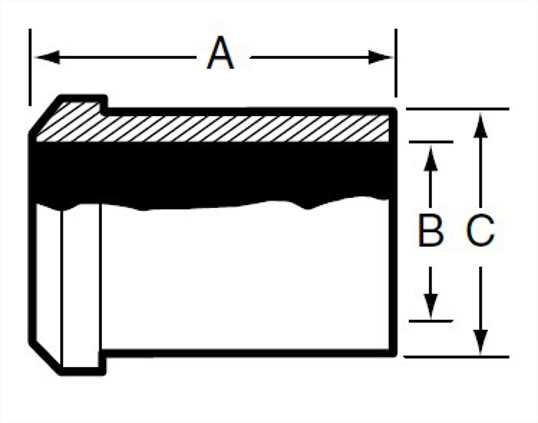

View Dimensions

Dimensions

14W - Plain BS Heavy Wall Tank Ferrule

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.
1	2.375	60.33	0.87	1.156	29.36
1.5	2.531	64.29	1.37	1.671	42.44
2	2.781	70.64	1.87	2.187	55.55
2.5	3.062	77.77	2.37	2.703	68.66
3	3.531	89.69	2.87	3.218	81.74
4	4.312	109.52	3.834	4.25	107.95

Close

	VNE part number
OD Tube Size	304	316L
1	14W1.0	14W-6L1.0
1.5	14W1.5	14W-6L1.5
2	14W2.0	14W-6L2.0
2.5	14W2.5	14W-6L2.5
3	14W3.0	14W-6L3.0
4	14W4.0	14W-6L4.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.375
A, mm.	60.33
B, in.	0.87
C, in.	1.156
C, mm.	29.36

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.531
A, mm.	64.29
B, in.	1.37
C, in.	1.671
C, mm.	42.44

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.781
A, mm.	70.64
B, in.	1.87
C, in.	2.187
C, mm.	55.55

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.062
A, mm.	77.77
B, in.	2.37
C, in.	2.703
C, mm.	68.66

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.531
A, mm.	89.69
B, in.	2.87
C, in.	3.218
C, mm.	81.74

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14W4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.312
A, mm.	109.52
B, in.	3.834
C, in.	4.25
C, mm.	107.95

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.375
A, mm.	60.33
B, in.	0.87
C, in.	1.156
C, mm.	29.36

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.531
A, mm.	64.29
B, in.	1.37
C, in.	1.671
C, mm.	42.44

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.781
A, mm.	70.64
B, in.	1.87
C, in.	2.187
C, mm.	55.55

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.062
A, mm.	77.77
B, in.	2.37
C, in.	2.703
C, mm.	68.66

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	3.531
A, mm.	89.69
B, in.	2.87
C, in.	3.218
C, mm.	81.74

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14W4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.312
A, mm.	109.52
B, in.	3.834
C, in.	4.25
C, mm.	107.95
