E32I-15I - Female E-Line Eccentric Reducer

E32I-15I - Female E-Line Eccentric Reducer

Material Type
Size

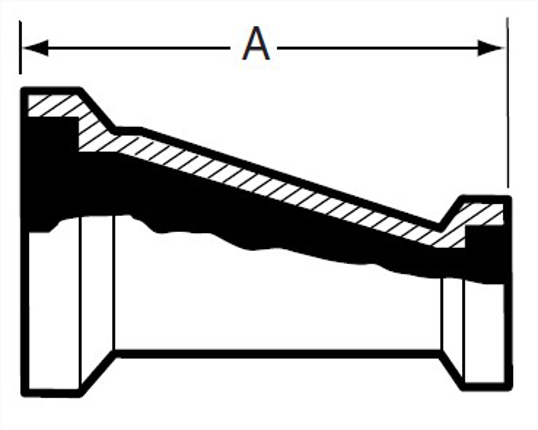

View Dimensions

Dimensions

E32I-15I - Female E-Line Eccentric Reducer

OD Tube Size	A, in.	A, mm.	Product Weight
1.5X1.0	3.718	94.44	0.6
2.0X1.0	5.812	147.62	0.88
2.0X1.5	3.968	100.79	1.08
2.5X1.5	6.093	154.76	0.66
2.5X2.0	4.187	106.35	1.1
3.0X1.5	8.156	207.16	1.58
3.0X2.0	6.25	158.75	1.58
3.0X2.5	4.375	111.13	1.58
4.0X2.0	10.375	263.53	2.9
4.0X2.5	8.5	215.9	2.76
4.0X3.0	6.585	167.26	2.58
6.0X3.0	7.687	195.25	--
6.0X4.0	8	203.2	--

Close

	VNE part number
OD Tube Size	304	316L
1.5X1.0	E32I-15I1.5X1.0	E32I-15I6L15X10
2.0X1.0	E32I-15I2.0X1.0	E32I-15I6L20X10
2.0X1.5	E32I-15I2.0X1.5	E32I-15I6L20X15
2.5X1.5	E32I-15I2.5X1.5	E32I-15I6L25X15
2.5X2.0	E32I-15I2.5X2.0	E32I-15I6L25X20
3.0X1.5	E32I-15I3.0X1.5	E32I-15I6L30X15
3.0X2.0	E32I-15I3.0X2.0	E32I-15I6L30X20
3.0X2.5	E32I-15I3.0X2.5	E32I-15I6L30X25
4.0X2.0	E32I-15I4.0X2.0	E32I-15I6L40X20
4.0X2.5	E32I-15I4.0X2.5	E32I-15I6L40X25
4.0X3.0	E32I-15I4.0X3.0	E32I-15I6L40X30
6.0X3.0	E32I-15I6.0X3.0	E32I-15I6L60X30
6.0X4.0	E32I-15I6.0X4.0	E32I-15I6L60X40

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.718
A, mm.	94.44
Product Weight	0.6

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	5.812
A, mm.	147.62
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.968
A, mm.	100.79
Product Weight	1.08

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.093
A, mm.	154.76
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.187
A, mm.	106.35
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8.156
A, mm.	207.16
Product Weight	1.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
Product Weight	1.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	10.375
A, mm.	263.53
Product Weight	2.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8.5
A, mm.	215.9
Product Weight	2.76

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.585
A, mm.	167.26
Product Weight	2.58

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	7.687
A, mm.	195.25

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8
A, mm.	203.2

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	1.5X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	1.5X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.718
A, mm.	94.44
Product Weight	0.6

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	5.812
A, mm.	147.62
Product Weight	0.88

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	3.968
A, mm.	100.79
Product Weight	1.08

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.093
A, mm.	154.76
Product Weight	0.66

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2.5X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.187
A, mm.	106.35
Product Weight	1.1

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8.156
A, mm.	207.16
Product Weight	1.56

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.25
A, mm.	158.75
Product Weight	1.58

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	3.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	4.375
A, mm.	111.13
Product Weight	1.58

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X2.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	10.375
A, mm.	263.53
Product Weight	2.9

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8.5
A, mm.	215.9
Product Weight	2.76

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	4.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	6.585
A, mm.	167.26
Product Weight	2.58

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X3.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6.0X3.0
Wall Thickness	.109X.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	7.687
A, mm.	195.25

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	6.0X4.0
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Female E-Line
OD Tube Size	6.0X4.0
Wall Thickness	.109X.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	8
A, mm.	203.2

Click here to request 3D Step File

Visit Neumo Ehrenberg Group

Questions? Call Toll Free: 1.800.356.1111

1149 Barberry Dr | PO Box 1698 | Janesville, WI 53547
Stainless@vnecorp.com | 608-756-4930
