14AHT - Plain BS Tygon Hose Adapter

14AHT - Plain BS Tygon Hose Adapter

Material Type
Size

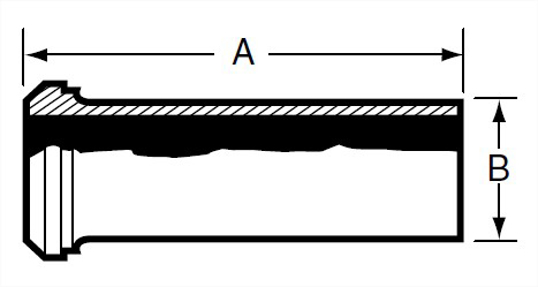

View Dimensions

Dimensions

14AHT - Plain BS Tygon Hose Adapter

OD Tube Size	A, in.	A, mm.	B, in.	Product Weight
1	4.687	119.05	1	0.32
1.5	4.718	119.84	1.5	0.48
2	4.718	119.84	2	0.38
2.5	4.843	123.01	2.5	0.96
3	4.906	124.61	3	1.22
4	5.218	132.54	4	1.92

Close

	VNE part number
OD Tube Size	304	316L
1	14AHT1.0	14AHT-6L1.0
1.5	14AHT1.5	14AHT-6L1.5
2	14AHT2.0	14AHT-6L2.0
2.5	14AHT2.5	14AHT-6L2.5
3	14AHT3.0	14AHT-6L3.0
4	14AHT4.0	14AHT-6L4.0

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.687
A, mm.	119.05
B, in.	1
Product Weight	0.32

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.718
A, mm.	119.84
B, in.	1.5
Product Weight	0.48

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.718
A, mm.	119.84
B, in.	2
Product Weight	0.38

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.843
A, mm.	123.01
B, in.	2.5
Product Weight	0.96

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.906
A, mm.	124.61
B, in.	3
Product Weight	1.22

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	14AHT4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.218
A, mm.	132.54
B, in.	4
Product Weight	1.92

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.687
A, mm.	119.05
B, in.	1
Product Weight	0.32

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.718
A, mm.	119.84
B, in.	1.5
Product Weight	0.48

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT2.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.718
A, mm.	119.84
B, in.	2
Product Weight	0.38

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.843
A, mm.	123.01
B, in.	2.5
Product Weight	0.96

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	4.906
A, mm.	124.61
B, in.	3
Product Weight	1.22

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Plain Bevel Seat X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	14AHT4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	5.218
A, mm.	132.54
B, in.	4
Product Weight	1.92
