EG13 - Hinged Light Duty Clamp

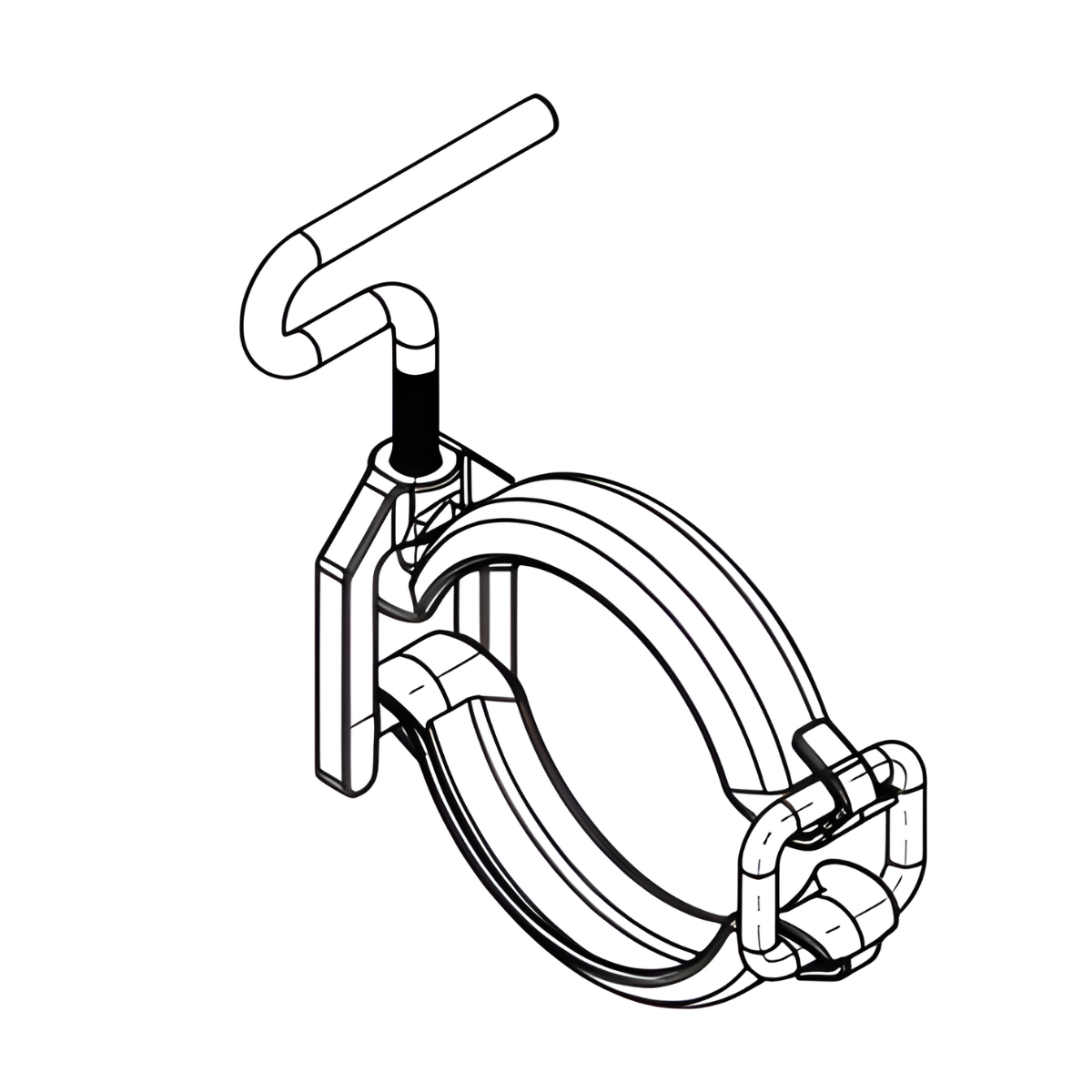

EG13 - Hinged Light Duty Clamp

Size

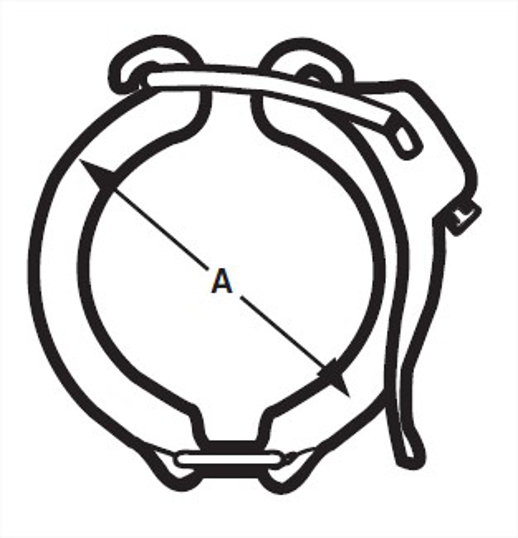

View Dimensions

Dimensions

EG13 - Hinged Light Duty Clamp

OD Tube Size	A, in.	A, mm.	Product Weight
1.5	2.142	54.41	0.18
2	2.653	67.39	0.2
2.5	3.205	81.41	0.22
3	3.74	95	0.24
4	4.803	122	0.28

Close

	VNE part number
OD Tube Size	304
1.5	EG131.5
2	EG132.0
2.5	EG132.5
3	EG133.0
4	EG134.0

Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.142
A, mm.	54.41
Product Weight	0.18

Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	2.653
A, mm.	67.39
Product Weight	0.2

Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.205
A, mm.	81.41
Product Weight	0.22

Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	3.74
A, mm.	95
Product Weight	0.24

Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
A, in.	4.803
A, mm.	122
Product Weight	0.28

Click here to request 3D Step File
