E2KC - Weld X Clamp 45 Degree Elbow

Material Type
Size

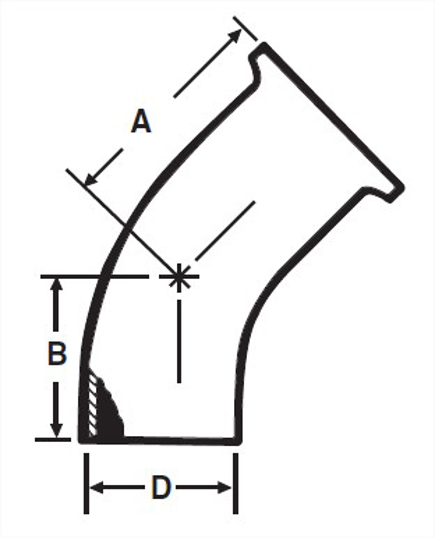

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	1.687	42.85	1.187	1	25.4	0.065	0.3
1.5	2.125	53.98	1.625	1.5	38.1	0.065	0.34
2	2.812	71.42	2.312	2	50.8	0.065	0.62
2.5	3.5	88.9	3	2.5	63.5	0.065	1
3	4.187	106.35	3.687	3	76.2	0.065	1.38
4	5.437	138.1	4.812	4	101.6	0.083	2.82
6	4.625	117.48	3.75	6	152.4	0.109	--

	VNE part number
OD Tube Size	304	316L
1	E2KC1.0	E2KC-6L1.0
1.5	E2KC1.5	E2KC-6L1.5
2	E2KC2.0	E2KC-6L2.0
2.5	E2KC2.5	E2KC-6L2.5
3	E2KC3.0	E2KC-6L3.0
4	E2KC4.0	E2KC-6L4.0
6	E2KC6.0	E2KC-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-1-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	1.687
A, mm.	42.85
B, in.	1.187
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-1.5-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	2.125
A, mm.	53.98
B, in.	1.625
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-2-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	2.812
A, mm.	71.42
B, in.	2.312
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.62

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-2.5-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	3.5
A, mm.	88.9
B, in.	3
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-3-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	4.187
A, mm.	106.35
B, in.	3.687
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.38

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-4-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	5.437
A, mm.	138.1
B, in.	4.812
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.82

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2KC6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-6-7-304
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	4.625
A, mm.	117.48
B, in.	3.75
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-1-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	1.687
A, mm.	42.85
B, in.	1.187
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-1.5-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	2.125
A, mm.	53.98
B, in.	1.625
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-2-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	2.812
A, mm.	71.42
B, in.	2.312
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.62

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-2.5-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	3.5
A, mm.	88.9
B, in.	3
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-3-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	4.187
A, mm.	106.35
B, in.	3.687
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.38

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-4-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	5.437
A, mm.	138.1
B, in.	4.812
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.82

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2KC6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	L2KMW
Steel O’brien Part Number	L2KM-6-7-316
Wayland Part Number	WL2KM
Dixon Part Number	B2KM
Sanitary Solutions Part Number	SS2KM
Sanitube Part Number	L2KM
A, in.	4.625
A, mm.	117.48
B, in.	3.75
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
