E15WHI - Female E-Line Heavy Wall Tank Ferrule

E15WHI - Female E-Line Heavy Wall Tank Ferrule

Material Type
Size

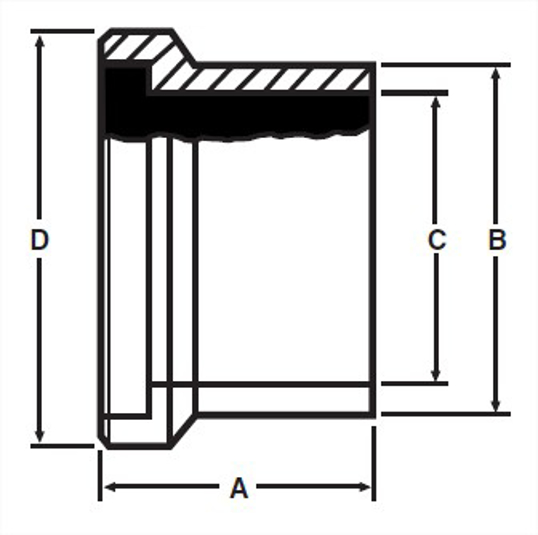

View Dimensions

Dimensions

E15WHI - Female E-Line Heavy Wall Tank Ferrule

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.
1	1.625	41.28	1.16	0.87	22.1	2	50.8
1.5	1.625	41.28	1.687	1.37	34.8	2.008	51
2	1.75	44.45	2.25	1.87	47.5	2.648	67.26
2.5	1.75	44.45	2.708	2.37	60.2	3.317	84.25
3	1.812	46.02	3.313	2.87	72.9	3.868	98.25
4	2.125	53.98	4.25	3.834	97.38	4.882	124

Close

	VNE part number
OD Tube Size	316L
1	E15WHI-6L1.0
1.5	E15WHI-6L1.5
2	E15WHI-6L2.0
2.5	E15WHI-6L2.5
3	E15WHI-6L3.0
4	E15WHI-6L4.0

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15WHI1.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28
B, in.	1.16
C, in.	0.87
C, mm.	22.1
D, in.	2
D, mm.	50.8

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15WHI1.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.625
A, mm.	41.28
B, in.	1.687
C, in.	1.37
C, mm.	34.8
D, in.	2.008
D, mm.	51

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	2.25
C, in.	1.87
C, mm.	47.5
D, in.	2.648
D, mm.	67.26

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15WHI2.5.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.75
A, mm.	44.45
B, in.	2.708
C, in.	2.37
C, mm.	60.2
D, in.	3.317
D, mm.	84.25

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15WHI3.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	1.812
A, mm.	46.02
B, in.	3.313
C, in.	2.87
C, mm.	72.9
D, in.	3.868
D, mm.	98.25

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Female E-Line X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E15WHI4.0.STEP
Catalog File	Fittings Catalog.pdf
A, in.	2.125
A, mm.	53.98
B, in.	4.25
C, in.	3.834
C, mm.	97.38
D, in.	4.882
D, mm.	124
