EG14RT - Rubber Hose Adapter

Material Type
Size

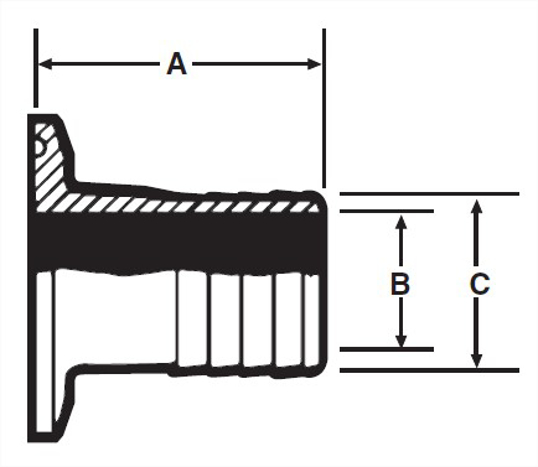

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
0.5	2	50.8	0.37	0.5	12.7	0.08
0.75	2	50.8	0.62	0.75	19.05	0.14
1	1.687	42.85	0.87	1	25.4	0.2
1.0X.5	2	50.8	0.37	0.5	12.7	0.3
1.0X.75	2	50.8	0.62	0.75	19.05	0.26
1.25	--	--	1.185	1.25	31.75	--
1.5	1.687	42.85	1.37	1.5	38.1	0.18
1.5X1.25	3.5	88.9	1.12	1.25	31.75	--
2	2.312	58.72	1.87	2	50.8	0.3
2.0X1.0	3.5	88.9	0.87	1	25.4	--
2.0X1.5	3.5	88.9	1.37	1.5	38.1	--
2.5	2.312	58.72	2.37	2.5	63.5	0.38
2.5X2.0	3.5	88.9	1.87	2	50.8	--
3	3.093	78.56	2.87	3	76.2	0.7
3.0X2.0	3.5	88.9	1.87	2	50.8	--
3.0X2.5	3.5	88.9	2.37	2.5	63.5	--
4	3.406	86.51	3.834	4	101.6	1.08
4.0X2.5	3.625	92.08	2.37	2.5	63.5	--
4.0X3.0	3.625	92.08	3.87	3	76.2	--
6	8.875	225.43	5.782	6	152.4	--

	VNE part number
OD Tube Size	304	316L
0.5	--	EG14RT-6L.5
0.75	--	EG14RT-6L.75
1	EG14RT1.0	EG14RT-6L1.0
1.0X.5	--	EG14RT-6L1.0X.5
1.0X.75	--	EG14RT-6L1.0X.75
1.25	--	EG14RT-6L1.25
1.5	EG14RT1.5	EG14RT-6L1.5
1.5X1.25	--	EG14RT-6L1.5X1.25
2	EG14RT2.0	EG14RT-6L2.0
2.0X1.0	--	EG14RT-6L2.0X1.0
2.0X1.5	--	EG14RT6L2.0X1.5
2.5	EG14RT2.5	EG14RT-6L2.5
2.5X2.0	--	EG14RT6L2.5X2.0
3	EG14RT3.0	EG14RT-6L3.0
3.0X2.0	--	EG14RT6L3.0X2.0
3.0X2.5	--	EG14RT6L3.0X2.5
4	EG14RT4.0	EG14RT-6L4.0
4.0X2.5	--	EG14RT6L4.0X2.5
4.0X3.0	--	EG14RT6L4.0X3.0
6	EG14RT6.0	EG14RT-6L6.0

Material Type	316L
Size	1.0X.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.0X.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.0X.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1X.50-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2
A, mm.	50.8
B, in.	0.37
C, in.	0.5
C, mm.	12.7
Product Weight	0.3

Material Type	316L
Size	1.0X.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.0X.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.0X.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1X.75-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2
A, mm.	50.8
B, in.	0.62
C, in.	0.75
C, mm.	19.05
Product Weight	0.26

Material Type	316L
Size	1.5X1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.5X1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.5X1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1.5X1.25-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	1.12
C, in.	1.25
C, mm.	31.75

Material Type	316L
Size	2.0X1.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.0X1.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.0X1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2X1-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	0.87
C, in.	1
C, mm.	25.4

Material Type	316L
Size	2.0X1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.0X1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.0X1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR2X1.5-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	1.37
C, in.	1.5
C, mm.	38.1

Material Type	316L
Size	2.5X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.5X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.5X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR2.5X2-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	1.87
C, in.	2
C, mm.	50.8

Material Type	316L
Size	3.0X2.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	3.0X2.0
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT3.0X2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR3X2-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	1.87
C, in.	2
C, mm.	50.8

Material Type	316L
Size	3.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	3.0X2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT3.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR3X2.5
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.5
A, mm.	88.9
B, in.	2.37
C, in.	2.5
C, mm.	63.5

Material Type	316L
Size	4.0X2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	4.0X2.5
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT4.0X2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR4X2.5
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.625
A, mm.	92.08
B, in.	2.37
C, in.	2.5
C, mm.	63.5

Material Type	316L
Size	4.0X3.0
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	4.0X3.0
Wall Thickness	.083X.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT4.0X3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR4X3
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.625
A, mm.	92.08
B, in.	3.87
C, in.	3
C, mm.	76.2

Material Type	304
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2.5-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2.312
A, mm.	58.72
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.38

Material Type	304
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-3-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.093
A, mm.	78.56
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.7

Material Type	304
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-4-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.406
A, mm.	86.51
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.08

Material Type	304
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-6-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	8.875
A, mm.	225.43
B, in.	5.782
C, in.	6
C, mm.	152.4

Material Type	304
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	1.687
A, mm.	42.85
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.2

Material Type	304
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1.5-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	1.687
A, mm.	42.85
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.18

Material Type	304
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2-304
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2.312
A, mm.	58.72
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.3

Material Type	316L
Size	0.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-.50-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2
A, mm.	50.8
B, in.	0.37
C, in.	0.5
C, mm.	12.7
Product Weight	0.08

Material Type	316L
Size	0.75
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT.75.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-.75-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2
A, mm.	50.8
B, in.	0.62
C, in.	0.75
C, mm.	19.05
Product Weight	0.14

Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	1.687
A, mm.	42.85
B, in.	0.87
C, in.	1
C, mm.	25.4
Product Weight	0.2

Material Type	316L
Size	1.25
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1.25-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
B, in.	1.185
C, in.	1.25
C, mm.	31.75

Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-1.5-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	1.687
A, mm.	42.85
B, in.	1.37
C, in.	1.5
C, mm.	38.1
Product Weight	0.18

Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2.312
A, mm.	58.72
B, in.	1.87
C, in.	2
C, mm.	50.8
Product Weight	0.3

Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-2.5-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	2.312
A, mm.	58.72
B, in.	2.37
C, in.	2.5
C, mm.	63.5
Product Weight	0.38

Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-3-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.093
A, mm.	78.56
B, in.	2.87
C, in.	3
C, mm.	76.2
Product Weight	0.7

Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-4-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	3.406
A, mm.	86.51
B, in.	3.834
C, in.	4
C, mm.	101.6
Product Weight	1.08

Material Type	316L
Size	6
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Hose Barb
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG14RT6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	14MPHR
Steel O’brien Part Number	14MPHR-6-316
Wayland Part Number	W14MPHR
Dixon Part Number	14MPHR
Sanitary Solutions Part Number	SS14MPHR
Sanitube Part Number	14MPHR
A, in.	8.875
A, mm.	225.43
B, in.	5.782
C, in.	6
C, mm.	152.4
