13MHHM-H - Heavy Duty Clamp (Wingnut with Hole)

13MHHM-H - Heavy Duty Clamp (Wingnut with Hole)

Size

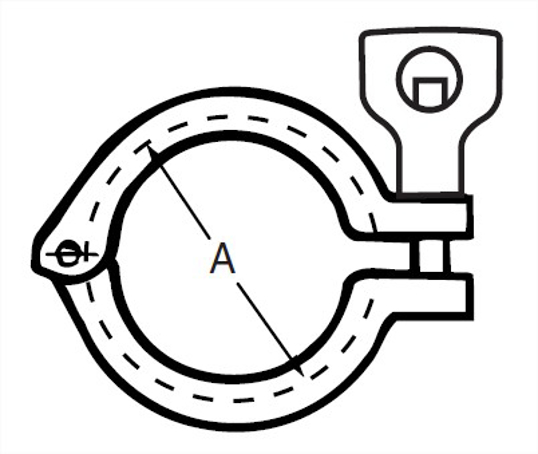

View Dimensions

Dimensions

13MHHM-H - Heavy Duty Clamp (Wingnut with Hole)

OD Tube Size	A, in.	A, mm.	Product Weight
0.75	1.125	28.58	0.22
1.5	2.122	53.9	0.705
2	2.654	67.41	0.75
2.5	3.185	80.9	0.794
3	3.717	94.41	0.882
4	4.82	122.43	1.23
5	5.817	147.75	2.4
6	6.695	170.05	2.75

Close

	VNE part number
OD Tube Size	304
0.75	13MHHM.75-H
1.5	13MHHM1.5-H
2	13MHHM2.0-H
2.5	13MHHM2.5-H
3	13MHHM3.0-H
4	13MHHM4.0-H
5	13MHHM5.0-H
6	13MHHM6.0-H

Size	4
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-4-304
A, in.	4.82
A, mm.	122.43
Product Weight	1.23

Size	5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	5
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-5-304
A, in.	5.817
A, mm.	147.75
Product Weight	2.4

Size	6
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-6-304
A, in.	6.695
A, mm.	170.05
Product Weight	2.75

Size	0.75
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-.50-304
A, in.	1.125
A, mm.	28.58
Product Weight	0.22

Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-1-304
A, in.	2.122
A, mm.	53.9
Product Weight	0.705

Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-2-304
A, in.	2.654
A, mm.	67.41
Product Weight	0.75

Size	2.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-2.5-304
A, in.	3.185
A, mm.	80.9
Product Weight	0.794

Size	3
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-3-304
A, in.	3.717
A, mm.	94.41
Product Weight	0.882
