TE7WCSW - BPE AWF X Clamp Short Run Tee Alloy 22 UNS N06022

Size
Surface Finish

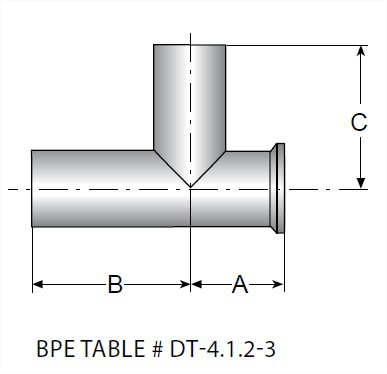

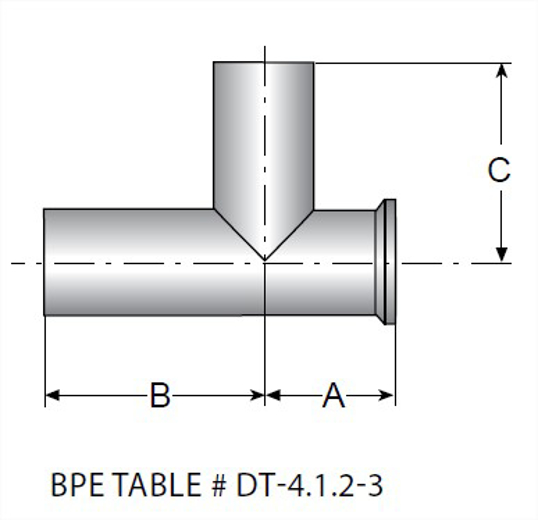

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	Product Weight
0.5	0.875	22.23	1.875	1.875	47.63	0.2
0.75	1	25.4	2	2	50.8	0.4
1	1.125	28.58	2.125	2.125	53.98	0.7
1.5	1.375	34.93	2.375	2.375	60.33	0.9
2	1.625	41.28	2.875	2.875	73.03	1.2
3	2.125	53.98	3.375	3.375	85.73	1.8

PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
0.5	TE7WCSWA22.5-PL
0.75	TE7WCSWA22.75-PL
1	TE7WCSWA221.0-PL
1.5	TE7WCSWA221.5-PL
2	TE7WCSWA222.0-PL
3	TE7WCSWA223.0-PL

PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD

	VNE part number
OD Tube Size	A22
0.5	TE7WCSWA22.5-PO
0.75	TE7WCSWA22.75-PO
1	TE7WCSWA221.0-PO
1.5	TE7WCSWA221.5-PO
2	TE7WCSWA222.0-PO
3	TE7WCSWA223.0-PO

Size	0.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L.5-...STEP
Catalog File	MaxCore.pdf
A, in.	0.875
A, mm.	22.23
B, in.	1.875
C, in.	1.875
C, mm.	47.63
Product Weight	0.2

Size	0.75
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L.75-...STEP
Catalog File	MaxCore.pdf
A, in.	1
A, mm.	25.4
B, in.	2
C, in.	2
C, mm.	50.8
Product Weight	0.4

Size	1
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	1.125
A, mm.	28.58
B, in.	2.125
C, in.	2.125
C, mm.	53.98
Product Weight	0.7

Size	1.5
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	1.375
A, mm.	34.93
B, in.	2.375
C, in.	2.375
C, mm.	60.33
Product Weight	0.9

Size	2
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	1.625
A, mm.	41.28
B, in.	2.875
C, in.	2.875
C, mm.	73.03
Product Weight	1.2

Size	3
Surface Finish	PL Finish - SF1 - 20 µin Mechanical ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Mechanical ID / 32 µin Mechanical OD
Polish Code	PL
SF Number	SF1
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	2.125
A, mm.	53.98
B, in.	3.375
C, in.	3.375
C, mm.	85.73
Product Weight	1.8

Size	3
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	3
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L3.0-...STEP
Catalog File	MaxCore.pdf
A, in.	2.125
A, mm.	53.98
B, in.	3.375
C, in.	3.375
C, mm.	85.73
Product Weight	1.8

Size	2
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	2
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L2.0-...STEP
Catalog File	MaxCore.pdf
A, in.	1.625
A, mm.	41.28
B, in.	2.875
C, in.	2.875
C, mm.	73.03
Product Weight	1.2

Size	1.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L1.5-...STEP
Catalog File	MaxCore.pdf
A, in.	1.375
A, mm.	34.93
B, in.	2.375
C, in.	2.375
C, mm.	60.33
Product Weight	0.9

Size	1
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	1
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L1.0-...STEP
Catalog File	MaxCore.pdf
A, in.	1.125
A, mm.	28.58
B, in.	2.125
C, in.	2.125
C, mm.	53.98
Product Weight	0.7

Size	0.75
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L.75-...STEP
Catalog File	MaxCore.pdf
A, in.	1
A, mm.	25.4
B, in.	2
C, in.	2
C, mm.	50.8
Product Weight	0.4

Size	0.5
Surface Finish	PO Finish - SF5 - 20 µin Electropolished ID / 32 µin Mechanical OD
Industry Standard	ASME BPE
BPE Table #	DT-4.1.2-3
ID / OD Polish	20 µin Electropolished ID / 32 µin Mechanical OD
Polish Code	PO
SF Number	SF5
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	A22
UNS #	N06022
Material Trade Names (Reference)	Hastelloy C22®
Country of Origin	USA, Israel
Material Test Reports	MTR’s Ship Automatically With Each Order
Passivated	Passivated per ASTM A967
Pressure Rating	Per current BPE standards - section DT
Cad Model File	TE7WCSW6L.5-...STEP
Catalog File	MaxCore.pdf
A, in.	0.875
A, mm.	22.23
B, in.	1.875
C, in.	1.875
C, mm.	47.63
Product Weight	0.2
