E7WWC - Weld X Weld X Clamp Tee

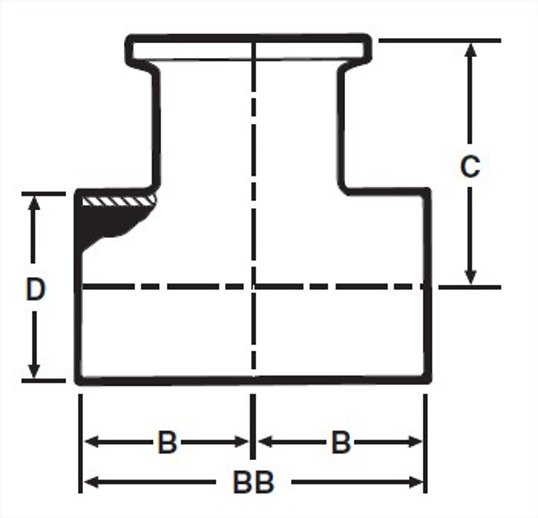

View Dimensions

Dimensions

OD Tube Size	B, in.	C, in.	C, mm.	D, in.	D, mm.	T Nom Wall, in.	BB, in.	BB, mm.	Product Weight
1	1.125	1.625	41.28	1	25.4	0.065	2.25	57.15	0.28
1.5	1.656	2.156	54.76	1.5	38.1	0.065	3.312	84.12	0.44
2	2.062	2.562	65.07	2	50.8	0.065	4.125	104.78	0.72
2.5	2.343	2.843	72.21	2.5	63.5	0.065	4.687	119.05	0.9
3	2.593	3.093	78.56	3	76.2	0.065	5.187	131.75	1.26
4	3.625	4.656	118.26	4	101.6	0.083	7.25	184.15	2.74
6	5.625	6.5	165.1	6	152.4	0.109	11.25	285.75	--

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-1-7-304
B, in.	1.125
C, in.	1.625
C, mm.	41.28
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.28

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-1.5-7-304
B, in.	1.656
C, in.	2.156
C, mm.	54.76
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-2-7-304
B, in.	2.062
C, in.	2.562
C, mm.	65.07
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.72

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-2.5-7-304
B, in.	2.343
C, in.	2.843
C, mm.	72.21
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.9

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-3-7-304
B, in.	2.593
C, in.	3.093
C, mm.	78.56
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.26

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-4-7-304
B, in.	3.625
C, in.	4.656
C, mm.	118.26
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	7.25
BB, mm.	184.15
Product Weight	2.74

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWC6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-6-7-304
B, in.	5.625
C, in.	6.5
C, mm.	165.1
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-1-7-316
B, in.	1.125
C, in.	1.625
C, mm.	41.28
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
BB, in.	2.25
BB, mm.	57.15
Product Weight	0.28

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-1.5-7-316
B, in.	1.656
C, in.	2.156
C, mm.	54.76
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
BB, in.	3.312
BB, mm.	84.12
Product Weight	0.44

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-2-7-316
B, in.	2.062
C, in.	2.562
C, mm.	65.07
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
BB, in.	4.125
BB, mm.	104.78
Product Weight	0.72

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-2.5-7-316
B, in.	2.343
C, in.	2.843
C, mm.	72.21
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
BB, in.	4.687
BB, mm.	119.05
Product Weight	0.9

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-3-7-316
B, in.	2.593
C, in.	3.093
C, mm.	78.56
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
BB, in.	5.187
BB, mm.	131.75
Product Weight	1.26

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-4-7-316
B, in.	3.625
C, in.	4.656
C, mm.	118.26
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
BB, in.	7.25
BB, mm.	184.15
Product Weight	2.74

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWC6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWM-6-7-316
B, in.	5.625
C, in.	6.5
C, mm.	165.1
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
BB, in.	11.25
BB, mm.	285.75
