2WCL - Weld 90 Degree Elbow Short

Material Type
Size

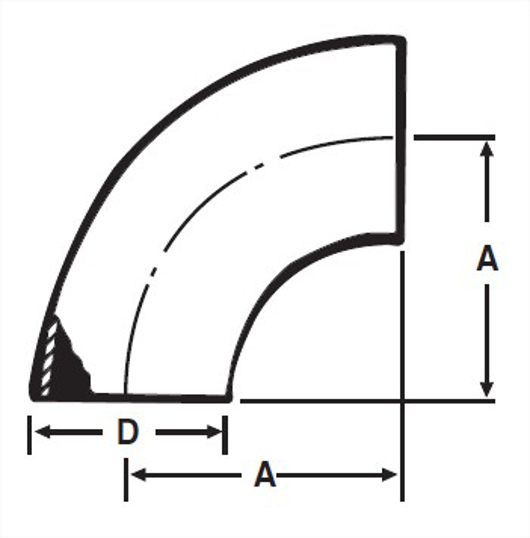

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	1.5	38.1	1	25.4	0.065	0.14
1.25	1.875	47.63	1.25	31.75	0.065	--
1.5	2.25	57.15	1.5	38.1	0.065	0.3
2	3	76.2	2	50.8	0.065	0.52
2.5	3.75	95.25	2.5	63.5	0.065	0.8
3	4.5	114.3	3	76.2	0.065	1.2
4	6	152.4	4	101.6	0.083	2.68
6	9	228.6	6	152.4	0.109	8.44
8	12	304.8	8	203.2	0.109	--

	VNE part number
OD Tube Size	304	316L
1	2WCL1.0	2WCL-6L1.0
1.25	2WCL1.25	2WCL-6L1.25
1.5	2WCL1.5	2WCL-6L1.5
2	2WCL2.0	2WCL-6L2.0
2.5	2WCL2.5	2WCL-6L2.5
3	2WCL3.0	2WCL-6L3.0
4	2WCL4.0	2WCL-6L4.0
6	2WCL6.0	2WCL-6L6.0
8	2WCL8.0	2WCL-6L8.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	1.5
A, mm.	38.1
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.14

Material Type	304
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1.25-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	1.875
A, mm.	47.63
D, in.	1.25
D, mm.	31.75
T Nom Wall, in.	0.065

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1.5-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	2.25
A, mm.	57.15
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-2-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	3
A, mm.	76.2
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.52

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-2.5-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	3.75
A, mm.	95.25
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-3-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	4.5
A, mm.	114.3
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-4-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	6
A, mm.	152.4
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.68

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-6-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	9
A, mm.	228.6
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
Product Weight	8.44

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	2WCL8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-8-7-304
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	12
A, mm.	304.8
D, in.	8
D, mm.	203.2
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	1.5
A, mm.	38.1
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.14

Material Type	316L
Size	1.25
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.25
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL1.25.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1.25-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	1.875
A, mm.	47.63
D, in.	1.25
D, mm.	31.75
T Nom Wall, in.	0.065

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-1.5-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	2.25
A, mm.	57.15
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.3

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-2-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	3
A, mm.	76.2
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	0.52

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-2.5-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	3.75
A, mm.	95.25
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	0.8

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-3-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	4.5
A, mm.	114.3
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	1.2

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-4-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	6
A, mm.	152.4
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	2.68

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-6-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	9
A, mm.	228.6
D, in.	6
D, mm.	152.4
T Nom Wall, in.	0.109
Product Weight	8.44

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	2WCL8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2WCL-7
Steel O’brien Part Number	2WCL-8-7-316
Wayland Part Number	W2WCL
Dixon Part Number	B2WCL
Sanitary Solutions Part Number	SS2WCL
Sanitube Part Number	2WC
A, in.	12
A, mm.	304.8
D, in.	8
D, mm.	203.2
T Nom Wall, in.	0.109
