E14WLI-5 - Schedule 5 Male E-Line Long Ferrule

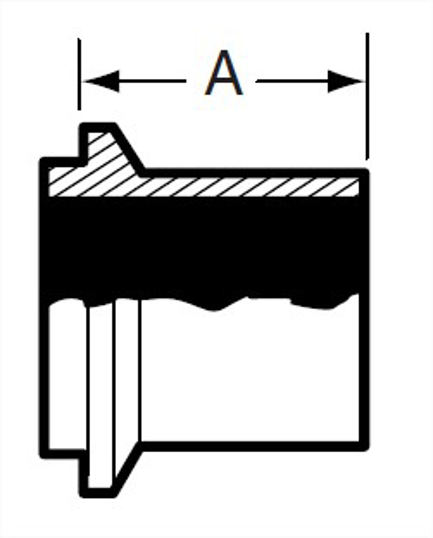

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	C, in.	C, mm.	D, in.	D, mm.
1	1.562	39.67	2	1.185	30.1	1.315	33.4
1.5	1.843	46.81	2.648	1.77	44.96	1.9	48.26
2	2.062	52.37	3.317	2.245	57.02	2.375	60.33
2.5	1.562	39.67	3.868	2.709	68.81	2.875	73.03
3	1.562	39.67	4.882	3.334	84.68	3.5	88.9
4	1.562	39.67	5.882	3.334	84.68	4.5	114.3

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.562
A, mm.	39.67
B, in.	2
C, in.	1.185
C, mm.	30.1
D, in.	1.315
D, mm.	33.4

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	1.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.843
A, mm.	46.81
B, in.	2.648
C, in.	1.77
C, mm.	44.96
D, in.	1.9
D, mm.	48.26

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	2.062
A, mm.	52.37
B, in.	3.317
C, in.	2.245
C, mm.	57.02
D, in.	2.375
D, mm.	60.33

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	2.5
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.562
A, mm.	39.67
B, in.	3.868
C, in.	2.709
C, mm.	68.81
D, in.	2.875
D, mm.	73.03

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	3
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.562
A, mm.	39.67
B, in.	4.882
C, in.	3.334
C, mm.	84.68
D, in.	3.5
D, mm.	88.9

Cad Model File	Click here to request 3D Step File
Material Type	316L
Size	4
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Male E-Line X Schedule 5 Pipe
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	HDI-14WLI
Wayland Part Number	W14WLI
Dixon Part Number	14WLI
Sanitary Solutions Part Number	SS14WLI
Sanitube Part Number	14WLI
A, in.	1.562
A, mm.	39.67
B, in.	5.882
C, in.	3.334
C, mm.	84.68
D, in.	4.5
D, mm.	114.3
