EG2C - Clamp 90 Degree Elbow

Material Type
Size

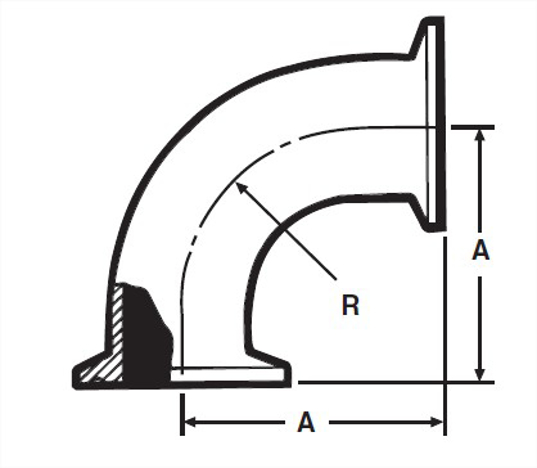

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	R, in.	Product Weight
1	2	50.8	1.5	0.42
1.5	2.75	69.85	2.25	0.44
2	3.5	88.9	3	0.76
2.5	4.25	107.95	3.75	1.12
3	5	127	4.5	1.6
4	6.625	168.28	6	3.44
6	9.875	250.83	9	9.94
8	12.937	328.6	12	--

	VNE part number
OD Tube Size	304	316L
1	EG2C1.0	EG2C-6L1.0
1.5	EG2C1.5	EG2C-6L1.5
2	EG2C2.0	EG2C-6L2.0
2.5	EG2C2.5	EG2C-6L2.5
3	EG2C3.0	EG2C-6L3.0
4	EG2C4.0	EG2C-6L4.0
6	EG2C6.0	EG2C-6L6.0
8	EG2C8.0	EG2C-6L8.0

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-6-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	9.875
A, mm.	250.83
R, in.	9
Product Weight	9.94

Material Type	316L
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-8-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	12.937
A, mm.	328.6
R, in.	12

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-1-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	2
A, mm.	50.8
R, in.	1.5
Product Weight	0.42

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-1.5-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	2.75
A, mm.	69.85
R, in.	2.25
Product Weight	0.44

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-2-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	3.5
A, mm.	88.9
R, in.	3
Product Weight	0.76

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-2.5-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	4.25
A, mm.	107.95
R, in.	3.75
Product Weight	1.12

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-3-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	5
A, mm.	127
R, in.	4.5
Product Weight	1.6

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-4-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	6.625
A, mm.	168.28
R, in.	6
Product Weight	3.44

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C6.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-6-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	9.875
A, mm.	250.83
R, in.	9
Product Weight	9.94

Material Type	304
Size	8
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	8
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C8.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-8-304
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	12.937
A, mm.	328.6
R, in.	12

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C1.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-1-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	2
A, mm.	50.8
R, in.	1.5
Product Weight	0.42

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C1.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-1.5-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	2.75
A, mm.	69.85
R, in.	2.25
Product Weight	0.44

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C2.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-2-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	3.5
A, mm.	88.9
R, in.	3
Product Weight	0.76

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C2.5.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-2.5-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	4.25
A, mm.	107.95
R, in.	3.75
Product Weight	1.12

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C3.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-3-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	5
A, mm.	127
R, in.	4.5
Product Weight	1.6

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	EG2C4.0.STEP
Catalog File	Fittings Catalog.pdf
Alfa Laval Part Number	2CMP
Steel O’brien Part Number	2CMP-4-316
Wayland Part Number	W2CMP
Dixon Part Number	B2CMP
Sanitary Solutions Part Number	SS2CMP
Sanitube Part Number	2CMP
A, in.	6.625
A, mm.	168.28
R, in.	6
Product Weight	3.44
