E7WWCS - Weld X Weld X Clamp Short Outlet Tee

E7WWCS - Weld X Weld X Clamp Short Outlet Tee

Material Type
Size

View Dimensions

Dimensions

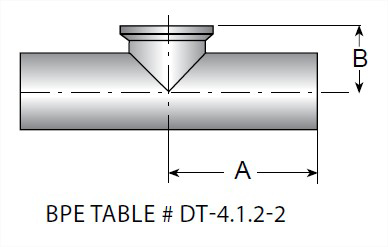

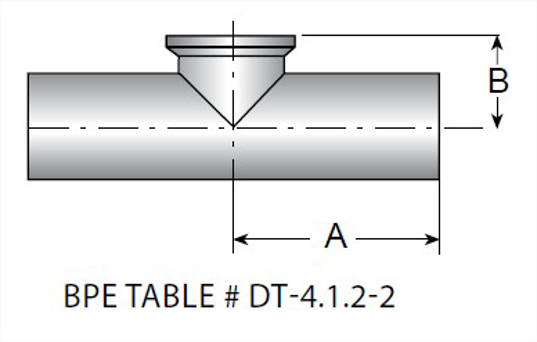

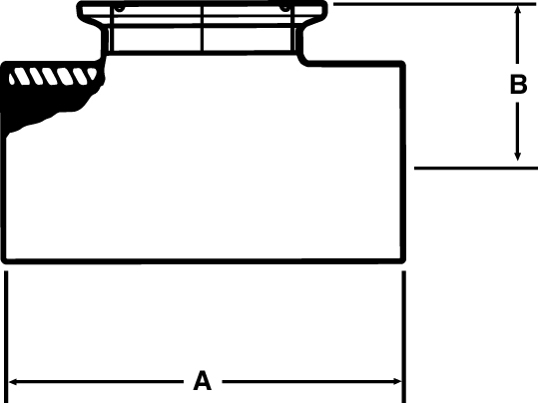

E7WWCS - Weld X Weld X Clamp Short Outlet Tee

OD Tube Size	A, in.	A, mm.	B, in.	T Nom Wall, in.
1	4.25	107.95	1.125	0.065
1.5	4.75	120.65	1.375	0.065
2	5.75	146.05	1.625	0.065
2.5	6.25	158.75	1.875	0.065
3	6.75	171.45	2.125	0.065
4	8.25	209.55	2.75	0.083
6	11.25	285.75	4.625	0.109

Close

	VNE part number
OD Tube Size	304	316L
1	E7WWCS1.0	E7WWCS-6L1.0
1.5	E7WWCS1.5	E7WWCS-6L1.5
2	E7WWCS2.0	E7WWCS-6L2.0
2.5	E7WWCS2.5	E7WWCS-6L2.5
3	E7WWCS3.0	E7WWCS-6L3.0
4	E7WWCS4.0	E7WWCS-6L4.0
6	E7WWCS6.0	E7WWCS-6L6.0

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-1-7-304
A, in.	4.25
A, mm.	107.95
B, in.	1.125
T Nom Wall, in.	0.065

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-1.5-7-304
A, in.	4.75
A, mm.	120.65
B, in.	1.375
T Nom Wall, in.	0.065

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-2-7-304
A, in.	5.75
A, mm.	146.05
B, in.	1.625
T Nom Wall, in.	0.065

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-2.5-7-304
A, in.	6.25
A, mm.	158.75
B, in.	1.875
T Nom Wall, in.	0.065

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-3-7-304
A, in.	6.75
A, mm.	171.45
B, in.	2.125
T Nom Wall, in.	0.065

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-4-7-304
A, in.	8.25
A, mm.	209.55
B, in.	2.75
T Nom Wall, in.	0.083

Material Type	304
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E7WWCS6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-6-7-304
A, in.	11.25
A, mm.	285.75
B, in.	4.625
T Nom Wall, in.	0.109

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-1-7-316
A, in.	4.25
A, mm.	107.95
B, in.	1.125
T Nom Wall, in.	0.065

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-1.5-7-316
A, in.	4.75
A, mm.	120.65
B, in.	1.375
T Nom Wall, in.	0.065

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-2-7-316
A, in.	5.75
A, mm.	146.05
B, in.	1.625
T Nom Wall, in.	0.065

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-2.5-7-316
A, in.	6.25
A, mm.	158.75
B, in.	1.875
T Nom Wall, in.	0.065

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-3-7-316
A, in.	6.75
A, mm.	171.45
B, in.	2.125
T Nom Wall, in.	0.065

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-4-7-316
A, in.	8.25
A, mm.	209.55
B, in.	2.75
T Nom Wall, in.	0.083

Material Type	316L
Size	6
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld X Clamp
OD Tube Size	6
Wall Thickness	0.109
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E7WWCS6.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	7WWMS-6-7-316
A, in.	11.25
A, mm.	285.75
B, in.	4.625
T Nom Wall, in.	0.109
