E2T - Weld X Thread BS 90 Degree Elbow

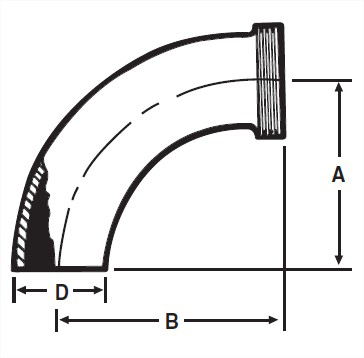

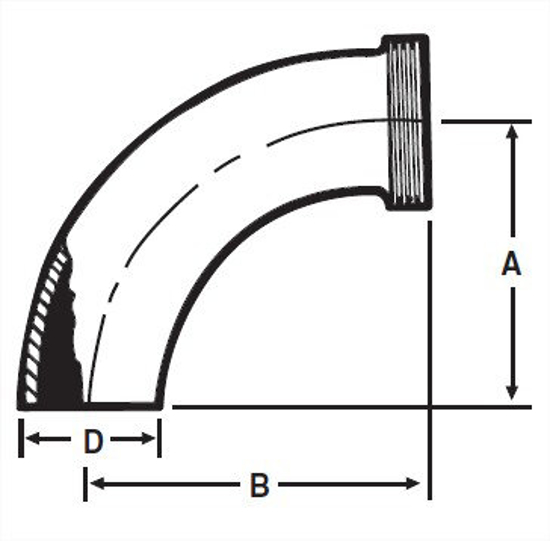

View Dimensions

Dimensions

OD Tube Size	A, in.	A, mm.	B, in.	D, in.	D, mm.	T Nom Wall, in.	Product Weight
1	2.062	52.37	2.75	1	25.4	0.065	0.34
1.5	2.937	74.6	3.656	1.5	38.1	0.065	0.56
2	4.062	103.17	4.781	2	50.8	0.065	1.06
2.5	5.187	131.75	6.031	2.5	63.5	0.065	1.56
3	6.937	176.2	7.218	3	76.2	0.065	2.46
4	8.937	227	9.531	4	101.6	0.083	5.26

Material Type	304
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1-7-304
A, in.	2.062
A, mm.	52.37
B, in.	2.75
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	304
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1.5-7-304
A, in.	2.937
A, mm.	74.6
B, in.	3.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.56

Material Type	304
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-2-7-304
A, in.	4.062
A, mm.	103.17
B, in.	4.781
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.06

Material Type	304
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-2.5-7-304
A, in.	5.187
A, mm.	131.75
B, in.	6.031
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.56

Material Type	304
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-3-7-304
A, in.	6.937
A, mm.	176.2
B, in.	7.218
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.46

Material Type	304
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Special Request
Cad Model File	E2T4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-4-7-304
A, in.	8.937
A, mm.	227
B, in.	9.531
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	5.26

Material Type	316L
Size	1
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T1.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1-7-316
A, in.	2.062
A, mm.	52.37
B, in.	2.75
D, in.	1
D, mm.	25.4
T Nom Wall, in.	0.065
Product Weight	0.34

Material Type	316L
Size	1.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T1.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-1.5-7-316
A, in.	2.937
A, mm.	74.6
B, in.	3.656
D, in.	1.5
D, mm.	38.1
T Nom Wall, in.	0.065
Product Weight	0.56

Material Type	316L
Size	2
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T2.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-2-7-316
A, in.	4.062
A, mm.	103.17
B, in.	4.781
D, in.	2
D, mm.	50.8
T Nom Wall, in.	0.065
Product Weight	1.06

Material Type	316L
Size	2.5
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T2.5.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-2.5-7-316
A, in.	5.187
A, mm.	131.75
B, in.	6.031
D, in.	2.5
D, mm.	63.5
T Nom Wall, in.	0.065
Product Weight	1.56

Material Type	316L
Size	3
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T3.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-3-7-316
A, in.	6.937
A, mm.	176.2
B, in.	7.218
D, in.	3
D, mm.	76.2
T Nom Wall, in.	0.065
Product Weight	2.46

Material Type	316L
Size	4
Industry Standard	3A
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Threaded Bevel Seat
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Material Test Reports	MTR’s Available Upon Request
Passivated	Special Request
Cad Model File	E2T4.0.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	L2C-4-7-316
A, in.	8.937
A, mm.	227
B, in.	9.531
D, in.	4
D, mm.	101.6
T Nom Wall, in.	0.083
Product Weight	5.26
