EG45BY - Clamp End Ball Check Valve

EG45BY - Clamp End Ball Check Valve

Size
Seat Material

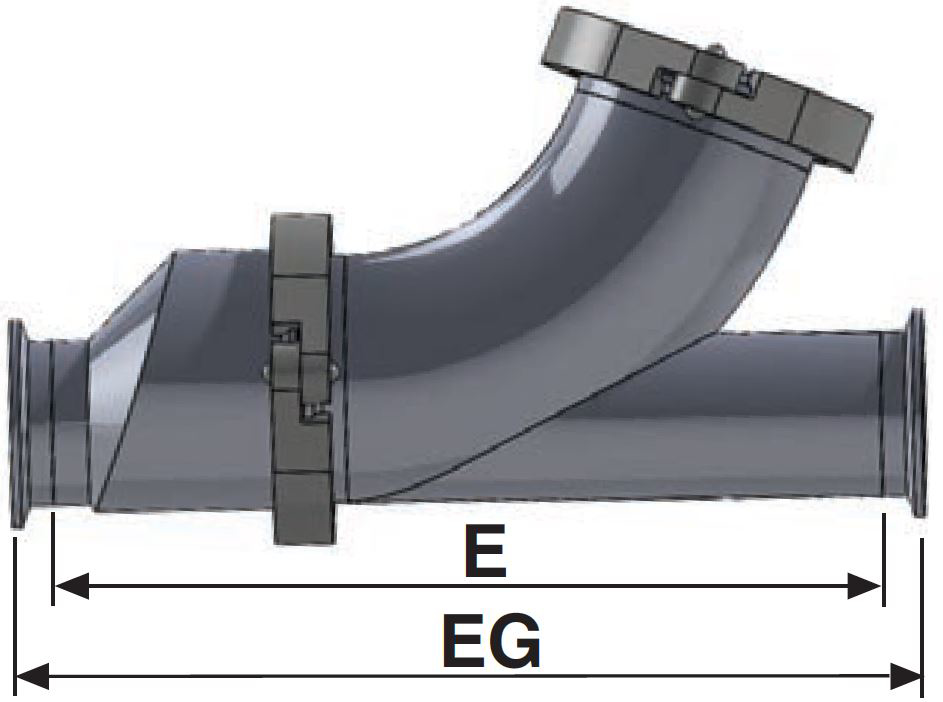

View Dimensions

Dimensions

EG45BY - Clamp End Ball Check Valve

OD Tube Size	O.A.L, in.	O.A.L., mm.	Product Weight
1.5	10	254	4.8
2	11	279.4	6.3
2.5	14.125	358.78	10.2
3	13.625	346.08	11.5

Close

BUNA

	VNE part number
OD Tube Size	316L
1.5	EG45BY-61.5
2	EG45BY-62.0
2.5	EG45BY-62.5
3	EG45BY-63.0

VITON

	VNE part number
OD Tube Size	316L
1.5	EG45BY-61.5-V
2	EG45BY-62.0-V
2.5	EG45BY-62.5-V
3	EG45BY-63.0-V

Size	1.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-61.5.STEP
Catalog File	valves.pdf
O.A.L, in.	10
O.A.L., mm.	254
Product Weight	4.8

Size	2
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-62.0.STEP
Catalog File	valves.pdf
O.A.L, in.	11
O.A.L., mm.	279.4
Product Weight	6.3

Size	2.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-62.5.STEP
Catalog File	valves.pdf
O.A.L, in.	14.125
O.A.L., mm.	358.78
Product Weight	10.2

Size	3
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-63.0.STEP
Catalog File	valves.pdf
O.A.L, in.	13.625
O.A.L., mm.	346.08
Product Weight	11.5

Size	1.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-61.5.STEP
Catalog File	valves.pdf
O.A.L, in.	10
O.A.L., mm.	254
Product Weight	4.8

Size	2
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-62.0.STEP
Catalog File	valves.pdf
O.A.L, in.	11
O.A.L., mm.	279.4
Product Weight	6.3

Size	2.5
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-62.5.STEP
Catalog File	valves.pdf
O.A.L, in.	14.125
O.A.L., mm.	358.78
Product Weight	10.2

Size	3
Seat Material	BUNA
Industry Standard	3A;FDA Title 21, Paragraph 177.2600
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Clamp X Clamp
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	BUNA
Country of Origin	USA
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	150 PSI
Valve Temperature Rating	15°F to 200°F
Cad Model File	EG45BY-63.0.STEP
Catalog File	valves.pdf
O.A.L, in.	13.625
O.A.L., mm.	346.08
Product Weight	11.5
