45W - Weld End Spring Check Valve

45W - Weld End Spring Check Valve

Size
Seat Material

View Dimensions

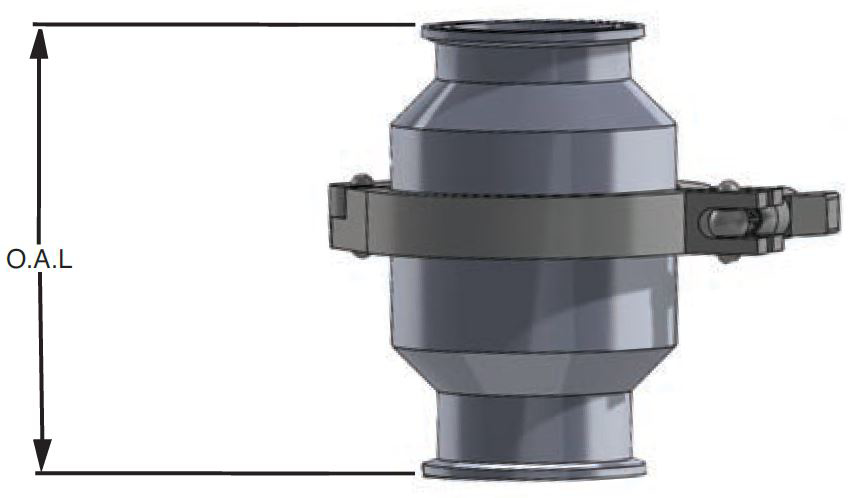

Dimensions

45W - Weld End Spring Check Valve

OD Tube Size	Product Weight
0.5	2.2
0.75	2.2
1	3.5
1.5	3.5
2	5.4
2.5	6
3	6.25
4	16

Close

EPDM

	VNE part number
OD Tube Size	316L
0.5	45W-6.5-E
0.75	45W-6.75-E
1	45W-61.0-E
1.5	45W-61.5-E
2	45W-62.0-E
2.5	45W-62.5-E
3	45W-63.0-E
4	45W-64.0-E

VITON

	VNE part number
OD Tube Size	316L
0.5	45W-6.5-V
0.75	45W-6.75-V
1	45W-61.0-V
1.5	45W-61.5-V
2	45W-62.0-V
2.5	45W-62.5-V
3	45W-63.0-V
4	45W-64.0-V

Cad Model File	Click here to request 3D Step File
Size	0.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	2.2

Cad Model File	Click here to request 3D Step File
Size	0.75
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	2.2

Cad Model File	Click here to request 3D Step File
Size	1
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	3.5

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	3.5

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	5.4

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	6

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	6.25

Cad Model File	Click here to request 3D Step File
Size	4
Seat Material	EPDM
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Seat-Material	EPDM
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	16

Cad Model File	Click here to request 3D Step File
Size	0.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	2.2

Cad Model File	Click here to request 3D Step File
Size	0.75
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	0.75
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	2.2

Cad Model File	Click here to request 3D Step File
Size	1
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	3.5

Cad Model File	Click here to request 3D Step File
Size	1.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	3.5

Cad Model File	Click here to request 3D Step File
Size	2
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	5.4

Cad Model File	Click here to request 3D Step File
Size	2.5
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	2.5
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	6

Cad Model File	Click here to request 3D Step File
Size	3
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	3
Wall Thickness	0.065
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	6.25

Cad Model File	Click here to request 3D Step File
Size	4
Seat Material	VITON
Industry Standard	3A;FDA Title 21, Paragraph 177.2600 / Class VI
ID / OD Polish	32 µin Mechanical ID / 32 µin Mechanical OD
Connections	Weld X Weld
OD Tube Size	4
Wall Thickness	0.083
Material-Type	316L
Seat-Material	VITON
Country of Origin	TAIWAN
Material Test Reports	AVAILABLE UPON REQUEST
Valve Pressure Rating	145 PSI
Valve Temperature Rating	15°F to 200°F
Catalog File	valves.pdf
Product Weight	16
