MTR Retrieval
EG2CS31 - Short Reducing Ferrule

EG2CS31 - Short Reducing Ferrule

In Stock: Log in to view stock
SKU: 690-10373
VNE part number: EG2CS31D-6L3.0X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10374
VNE part number: EG2CS31D-6L3.0X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10379
VNE part number: EG2CS31D-6L4.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10380
VNE part number: EG2CS31D-6L4.0X3.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10381
VNE part number: EG2CS31D-6L6.0X4.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10375
VNE part number: EG2CS31D-6L3.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10376
VNE part number: EG2CS31D-6L3.0X2.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10377
VNE part number: EG2CS31D-6L4.0X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10378
VNE part number: EG2CS31D-6L4.0X2.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10356
VNE part number: EG2CS31D-6L1.0X.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10358
VNE part number: EG2CS31D-6L1.0X.75

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10362
VNE part number: EG2CS31D-6L1.5X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10367
VNE part number: EG2CS31D-6L2.0X1.0

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10369
VNE part number: EG2CS31D-6L2.0X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10371
VNE part number: EG2CS31D-6L2.5X1.5

Please log in to view pricing
In Stock: Log in to view stock
SKU: 690-10372
VNE part number: EG2CS31D-6L2.5X2.0

Please log in to view pricing

Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

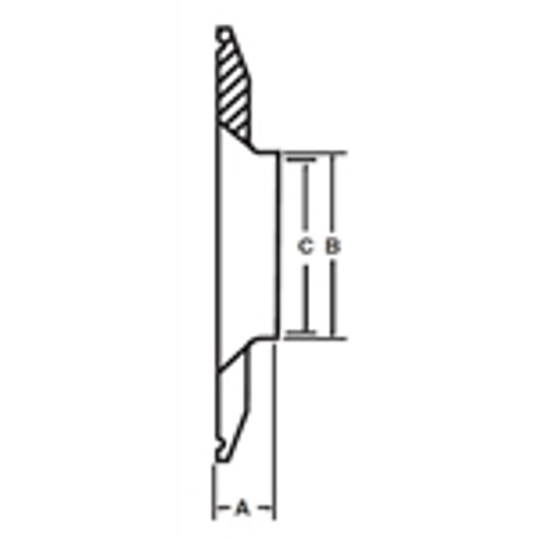

View Dimensions
Dimensions
EG2CS31 - Short Reducing Ferrule
OD Tube Size Product Weight
1.0X.5 --
1.0X.75 --
1.5X1.0 --
2.0X1.0 0.26
2.0X1.5 0.22
2.5X1.5 0.36
2.5X2.0 0.28
3.0X1.0 --
3.0X1.5 0.56
3.0X2.0 0.46
3.0X2.5 0.36
4.0X1.5 --
4.0X2.0 1.1
4.0X2.5 0.96
4.0X3.0 0.82
6.0X4.0 --
Close
VNE part number
OD Tube Size 316L
1.0X.5 EG2CS31D-6L1.0X.5
1.0X.75 EG2CS31D-6L1.0X.75
1.5X1.0 EG2CS31D-6L1.5X1.0
2.0X1.0 EG2CS31D-6L2.0X1.0
2.0X1.5 EG2CS31D-6L2.0X1.5
2.5X1.5 EG2CS31D-6L2.5X1.5
2.5X2.0 EG2CS31D-6L2.5X2.0
3.0X1.0 EG2CS31D-6L3.0X1.0
3.0X1.5 EG2CS31D-6L3.0X1.5
3.0X2.0 EG2CS31D-6L3.0X2.0
3.0X2.5 EG2CS31D-6L3.0X2.5
4.0X1.5 EG2CS31D-6L4.0X1.5
4.0X2.0 EG2CS31D-6L4.0X2.0
4.0X2.5 EG2CS31D-6L4.0X2.5
4.0X3.0 EG2CS31D-6L4.0X3.0
6.0X4.0 EG2CS31D-6L6.0X4.0
Material Type 316L
Size 3.0X1.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 3.0X1.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D3.0X1.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-3X1-316
Material Type 316L
Size 3.0X1.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 3.0X1.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D3.0X1.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-3X1.5-316
Product Weight 0.56
Material Type 316L
Size 4.0X2.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 4.0X2.5
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D4.0X2.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-4X2.5-316
Product Weight 0.96
Material Type 316L
Size 4.0X3.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 4.0X3.0
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D4.0X3.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-4X3-316
Product Weight 0.82
Material Type 316L
Size 6.0X4.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 6.0X4.0
Wall Thickness .109X.083
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D6.0X4.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-6X4-316
Material Type 316L
Size 3.0X2.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 3.0X2.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D3.0X2.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-3X2-316
Product Weight 0.46
Material Type 316L
Size 3.0X2.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 3.0X2.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D3.0X2.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-3X2.5-316
Product Weight 0.36
Material Type 316L
Size 4.0X1.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 4.0X1.5
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D4.0X1.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-4X1.5-316
Material Type 316L
Size 4.0X2.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 4.0X2.0
Wall Thickness .083X.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D4.0X2.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-4X2-316
Product Weight 1.1
Material Type 316L
Size 1.0X.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 1.0X.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D1.0X.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-1X.50-316
Material Type 316L
Size 1.0X.75
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 1.0X.75
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D1.0X.75.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-1X.75-316
Material Type 316L
Size 1.5X1.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 1.5X1.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D1.5X1.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-1.5X1-316
Material Type 316L
Size 2.0X1.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 2.0X1.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D2.0X1.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-2X1-316
Product Weight 0.26
Material Type 316L
Size 2.0X1.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 2.0X1.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D2.0X1.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-2X1.5-316
Product Weight 0.22
Material Type 316L
Size 2.5X1.5
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 2.5X1.5
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D2.5X1.5.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-2.5X1.5-316
Product Weight 0.36
Material Type 316L
Size 2.5X2.0
ID / OD Polish 32 µin Mechanical ID / 32 µin Mechanical OD
Connections Clamp X Weld
OD Tube Size 2.5X2.0
Wall Thickness 0.065
Material-Type 316L
Material Test Reports MTR’s Available Upon Request
Passivated Special Request
Pressure Rating See PSI Service Ratings for Clamps
Pressure Table clamppressure.pdf
Cad Model File EG2CS31D2.5X2.0.STEP
Catalog File Fittings Catalog.pdf
Steel O’brien Part Number 31WMP-2.5X2-316
Product Weight 0.28
