HEAVY DUTY CLAMP SINGLE PIN HINGE/HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	2
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	2
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	Click here to request 3D Step File
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-2-304

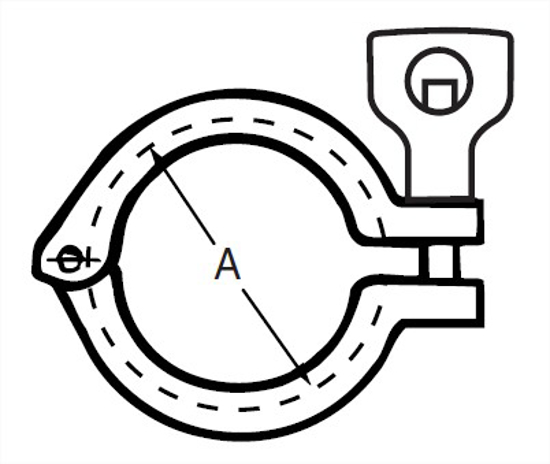

A, in.	2.654
A, mm.	67.41
Product Weight	0.75

Size

2

Connections

Clamp

Wall Thickness

0.065

Material Test Reports

COC Available for 304 Materials

Pressure Rating

See PSI Service Ratings for Clamps

Cad Model File

Click here to request 3D Step File

Steel O’brien Part Number

13MHHM-2-304

A, mm.

67.41
