Product configuration selected is not available or discontinued. Please review the chart below to see available product configurations or try to select a different material type/size option

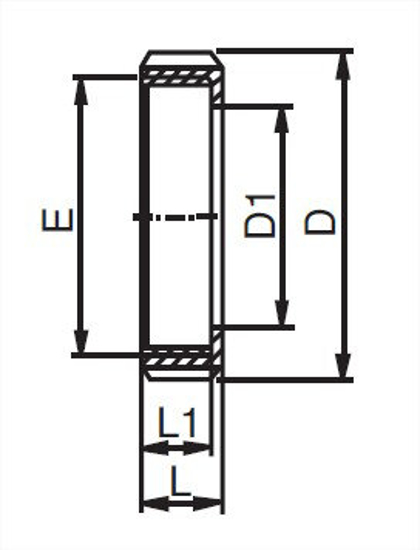

OD Tube Size | D, in. | D, mm. | D1, in. | D1, mm. | E, in. | L, in. | L, mm. | L1, in. | L1, mm. | Product Weight |
---|---|---|---|---|---|---|---|---|---|---|
DN10 |
|
|
|
|
|
|
|
|
|
|
DN15 |
|
|
|
|
|
|
|
|
|
|
DN20 |
|
|
|
|
|
|
|
|
|
|
DN25 |
|
|
|
|
|
|
|
|
|
|
DN32 |
|
|
|
|
|
|
|
|
|
|
DN40 |
|
|
|
|
|
|
|
|
|
|
DN50 |
|
|
|
|
|
|
|
|
|
|
DN65 |
|
|
|
|
|
|
|
|
|
|
DN75 |
|
|
|
|
|
|
|
|
|
|
DN80 |
|
|
|
|
|
|
|
|
|
|
DN100 |
|
|
|
|
|
|
|
|
|
|
DN125 |
|
|
|
|
|
|
|
|
|
|
DN150 |
|
|
|
|
|
|
|
|
|
|
DN200 |
|
|
|
|
|
|
|
|
|
|
VNE part number | |
---|---|
OD Tube Size | 304 |
DN10 | 4-NUT-NW10 |
DN15 | 4-NUT-NW15 |
DN20 | 4-NUT-NW20 |
DN25 | 4-NUT-NW25 |
DN32 | 4-NUT-NW32 |
DN40 | 4-NUT-NW40 |
DN50 | 4-NUT-NW50 |
DN65 | 4-NUT-NW65 |
DN75 | 4-NUT-NW75/3 |
DN80 | 4-NUT-NW80 |
DN100 | 4-NUT-NW100 |
DN125 | 4-NUT-NW125 |
DN150 | 4-NUT-NW150 |
DN200 | 4-NUT-NW200 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN10 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN10 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 1.5 |
D, mm. | 38 |
D1, in. | 0.75 |
D1, mm. | 19 |
E, in. | Rd 28 x 1/8" |
L, in. | 0.71 |
L, mm. | 18 |
L1, in. | 0.59 |
L1, mm. | 15 |
Product Weight | 0.16 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN15 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN15 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 1.73 |
D, mm. | 44 |
D1, in. | 0.98 |
D1, mm. | 25 |
E, in. | Rd 34 x 1/8" |
L, in. | 0.71 |
L, mm. | 18 |
L1, in. | 0.59 |
L1, mm. | 15 |
Product Weight | 0.18 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN20 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN20 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 2.13 |
D, mm. | 54 |
D1, in. | 1.22 |
D1, mm. | 31 |
E, in. | Rd 44 x 1/6" |
L, in. | 0.79 |
L, mm. | 20 |
L1, in. | 0.67 |
L1, mm. | 17 |
Product Weight | 0.28 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN25 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN25 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 2.48 |
D, mm. | 63 |
D1, in. | 1.42 |
D1, mm. | 36 |
E, in. | Rd 52 x 1/6" |
L, in. | 0.83 |
L, mm. | 21 |
L1, in. | 0.71 |
L1, mm. | 18 |
Product Weight | 0.34 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN32 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN32 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 2.76 |
D, mm. | 70 |
D1, in. | 1.65 |
D1, mm. | 42 |
E, in. | Rd 58 x 1/6" |
L, in. | 0.83 |
L, mm. | 21 |
L1, in. | 0.71 |
L1, mm. | 18 |
Product Weight | 0.44 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN40 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN40 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 3.07 |
D, mm. | 78 |
D1, in. | 1.93 |
D1, mm. | 49 |
E, in. | Rd 65 X 1/6" |
L, in. | 0.83 |
L, mm. | 21 |
L1, in. | 0.71 |
L1, mm. | 18 |
Product Weight | 0.52 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN50 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN50 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 3.62 |
D, mm. | 92 |
D1, in. | 2.44 |
D1, mm. | 62 |
E, in. | Rd 78 x 1/6" |
L, in. | 0.87 |
L, mm. | 22 |
L1, in. | 0.75 |
L1, mm. | 19 |
Product Weight | 0.72 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN65 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN65 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 4.41 |
D, mm. | 112 |
D1, in. | 3.15 |
D1, mm. | 80 |
E, in. | Rd 95 x 1/6" |
L, in. | 0.98 |
L, mm. | 25 |
L1, in. | 0.83 |
L1, mm. | 21 |
Product Weight | 1.16 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN75 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN75 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 4.72 |
D, mm. | 120 |
D1, in. | 3.41 |
D1, mm. | 86.5 |
E, in. | Rd 104 x 1/6" |
L, in. | 1.14 |
L, mm. | 29 |
L1, in. | 0.98 |
L1, mm. | 25 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN80 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN80 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 5 |
D, mm. | 127 |
D1, in. | 3.7 |
D1, mm. | 94 |
E, in. | Rd 110 x 1/4" |
L, in. | 1.14 |
L, mm. | 29 |
L1, in. | 0.98 |
L1, mm. | 25 |
Product Weight | 1.6 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN100 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN100 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 5.83 |
D, mm. | 148 |
D1, in. | 4.53 |
D1, mm. | 115 |
E, in. | Rd 130 x 1/4" |
L, in. | 1.22 |
L, mm. | 31 |
L1, in. | 1.02 |
L1, mm. | 26 |
Product Weight | 2.1 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN125 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN125 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 7.01 |
D, mm. | 178 |
D1, in. | 5.43 |
D1, mm. | 138 |
E, in. | Rd 160 x 1/4" |
L, in. | 1.38 |
L, mm. | 35 |
L1, in. | 1.18 |
L1, mm. | 30 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN150 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN150 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 8.27 |
D, mm. | 210 |
D1, in. | 6.46 |
D1, mm. | 164 |
E, in. | Rd 190 x 1/4" |
L, in. | 1.57 |
L, mm. | 40 |
L1, in. | 1.34 |
L1, mm. | 34 |
Cad Model File | Click here to request 3D Step File |
Material Type | 304 |
Size | DN200 |
Industry Standard | Din 11851;Din 11853 |
ID / OD Polish | 32 µin Mechanical ID / 32 µin Mechanical OD |
Connections | Din 11851 Nut |
OD Tube Size | DN200 |
Material-Type | 304 |
Country of Origin | Germany |
Material Test Reports | COC Available for 304 Materials |
Catalog File | Fittings Catalog.pdf |
D, in. | 10.24 |
D, mm. | 260 |
D1, in. | 8.46 |
D1, mm. | 215 |
E, in. | Rd 240 x 1/4" |
L, in. | 1.73 |
L, mm. | 44 |
L1, in. | 1.5 |
L1, mm. | 38 |
