HEAVY DUTY CLAMP SINGLE PIN HINGE/HOLE IN THE WINGNUT

Attribute name	Attribute value
Size	1.5
ID / OD Polish	Tumble ID / Tumble OD
Connections	Clamp
OD Tube Size	1.5
Wall Thickness	0.065
Material-Type	304
Material Test Reports	COC Available for 304 Materials
Passivated	Not Applicable
Pressure Rating	See PSI Service Ratings for Clamps
Pressure Table	clamppressure.pdf
Cad Model File	13MHHM1.5-H.STEP
Catalog File	Fittings Catalog.pdf
Steel O’brien Part Number	13MHHM-1-304

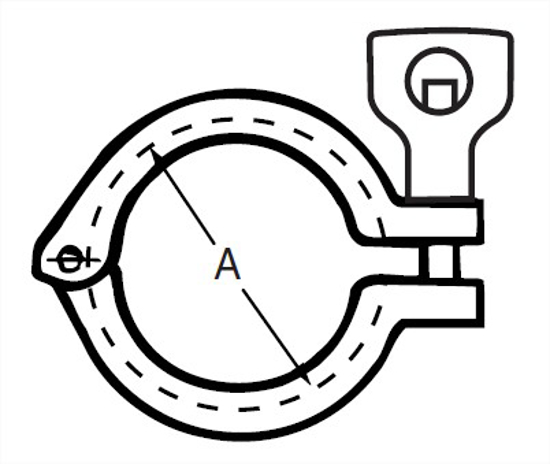

A, in.	2.122
A, mm.	53.9
Product Weight	0.705
